MTX Electric Hub Motor Replacement Side Cover Plate

DESCRIPTION

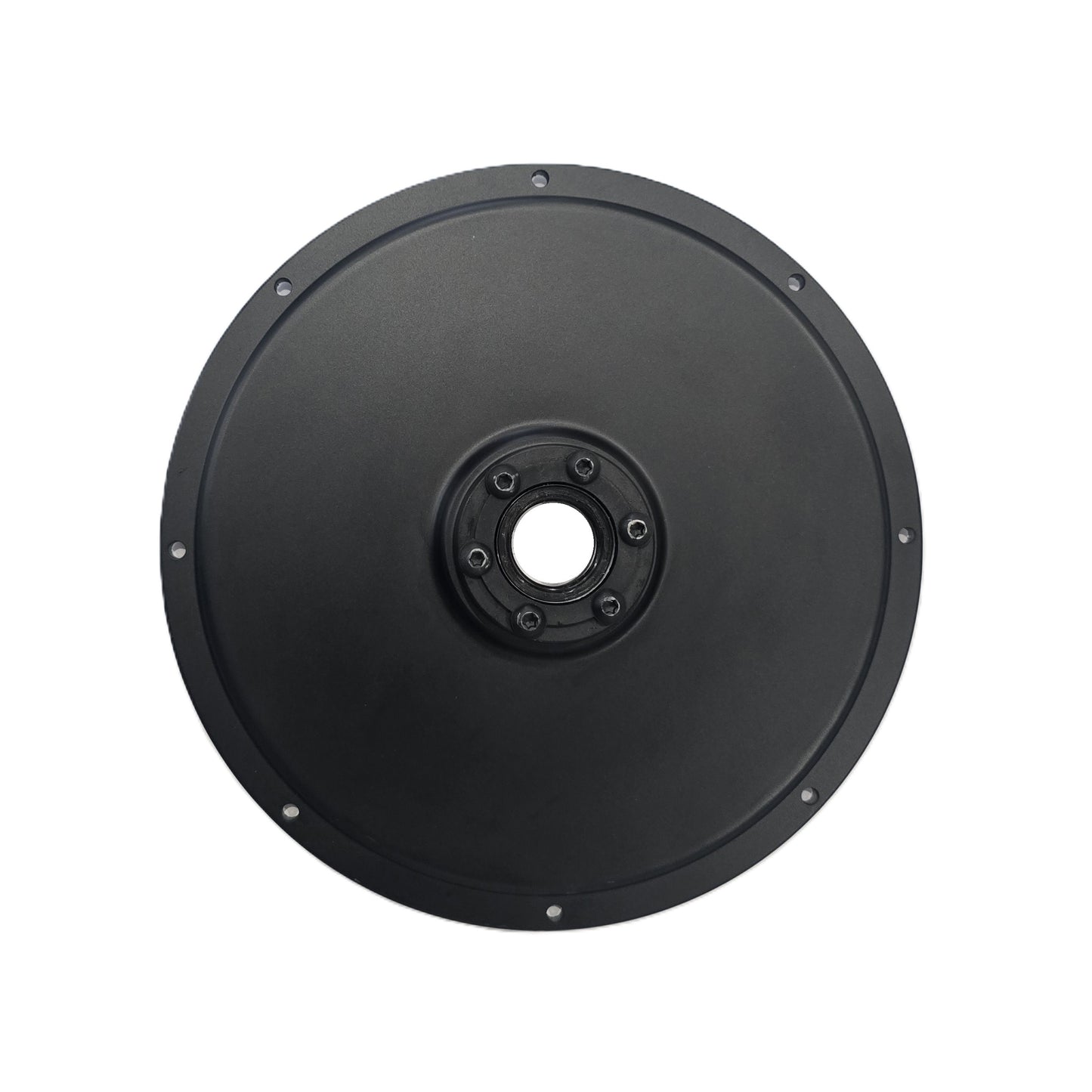

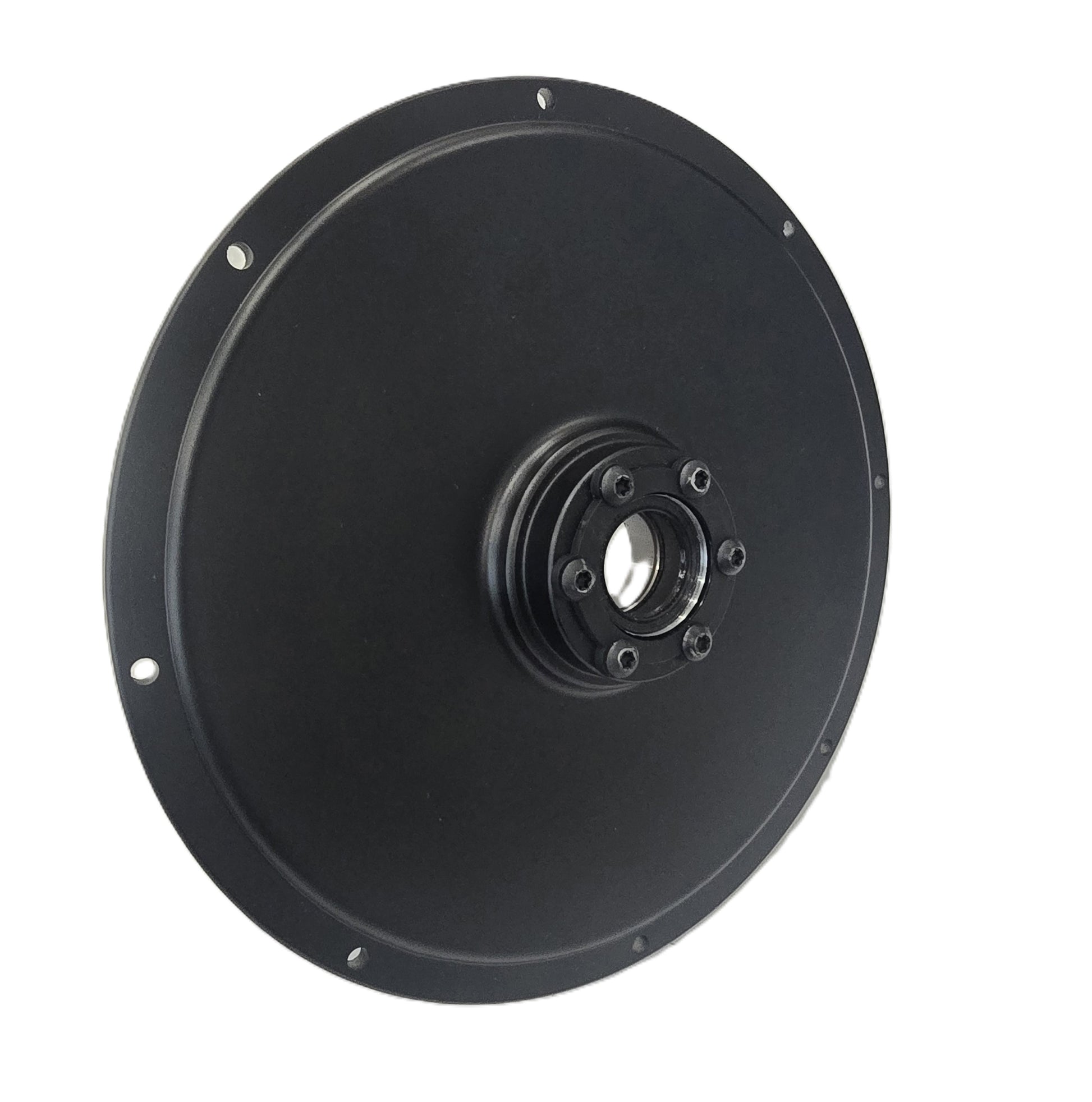

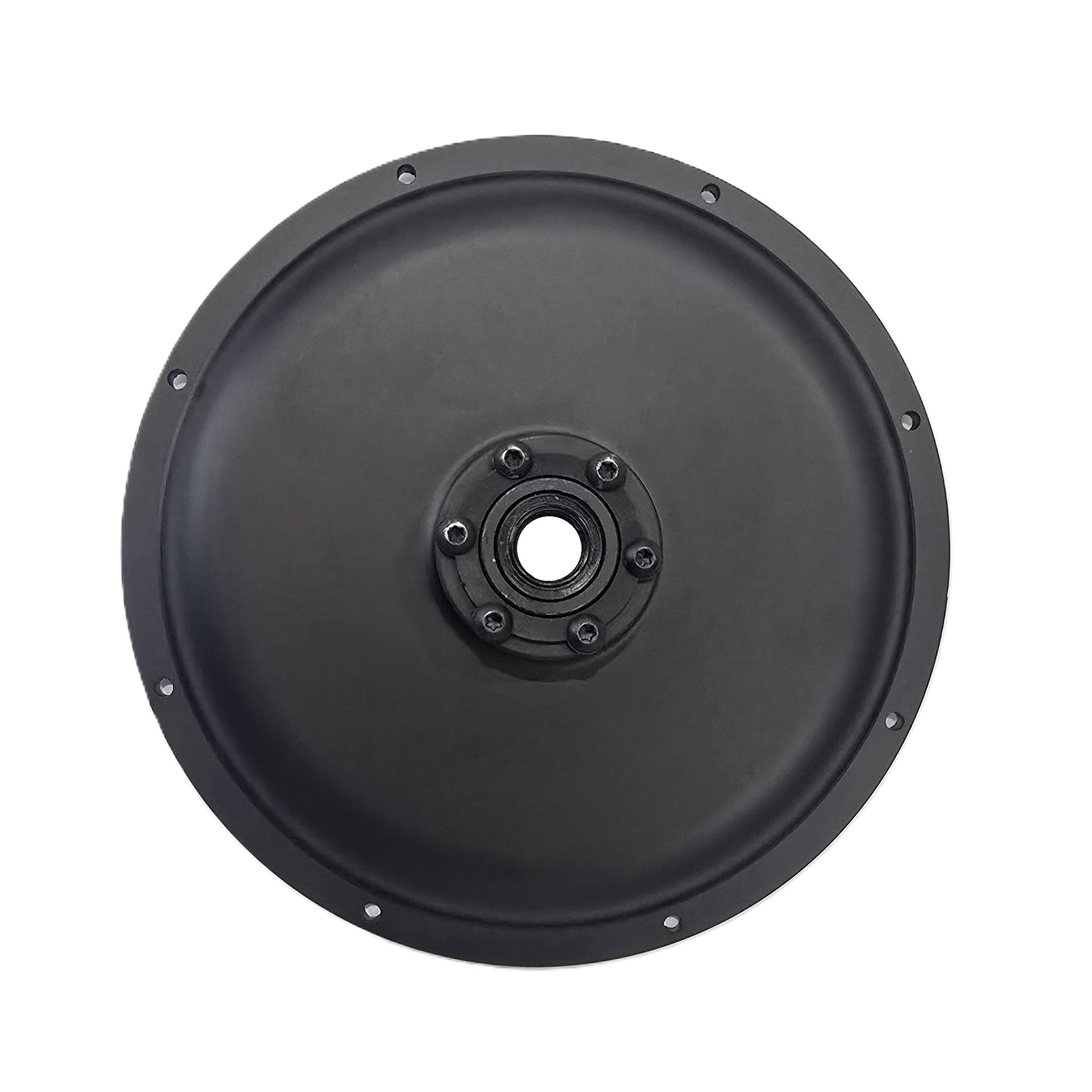

Genuine replacement motor side cover (plate) for our MTX electric gearless rear hub motors.

Note 1: Refer to the photos or reach out to us if any further information is required before purchase.

Note 2: 1500W and 2000W motors share the same dimensions and geometry for both the Disc Side Cover and Gear Side Cover.

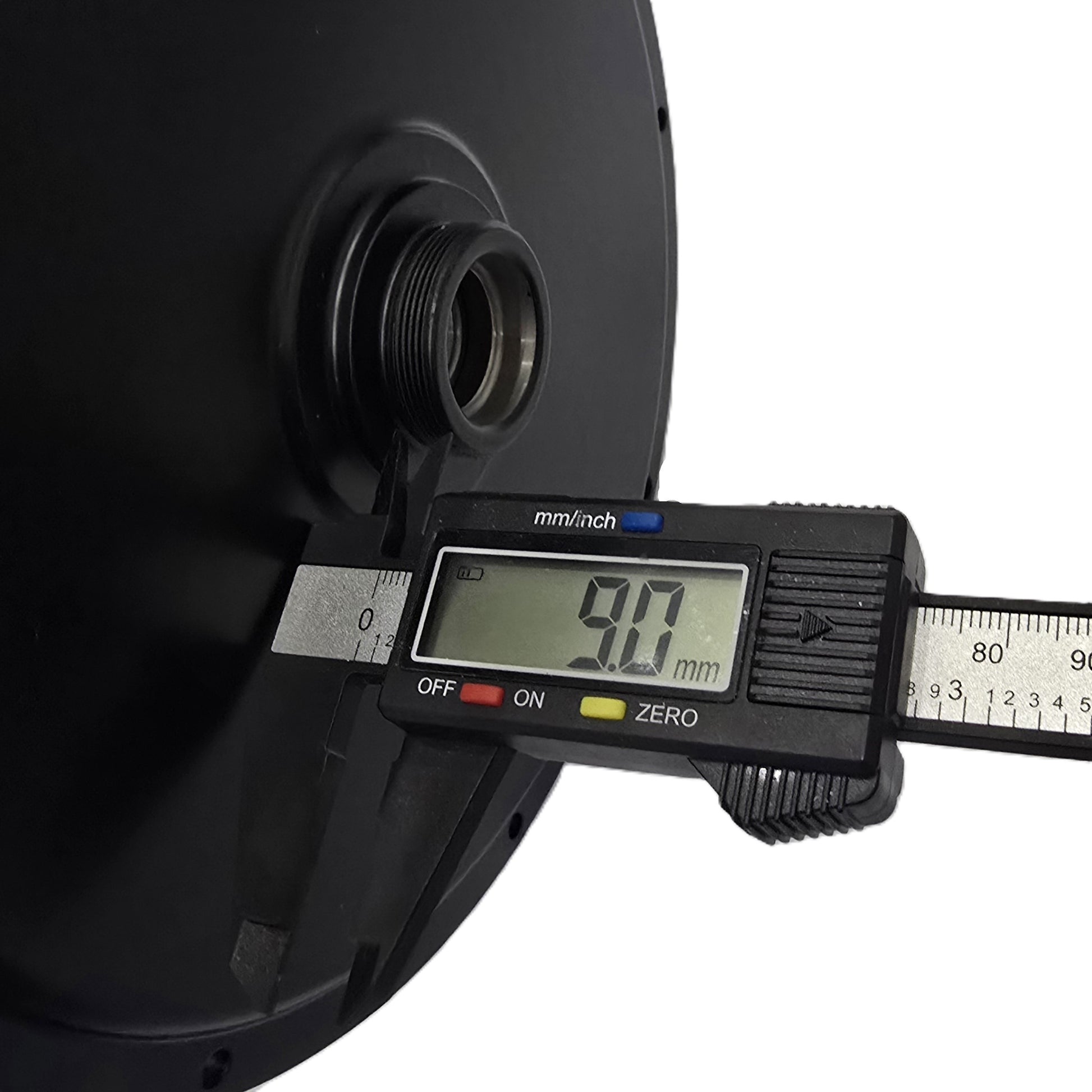

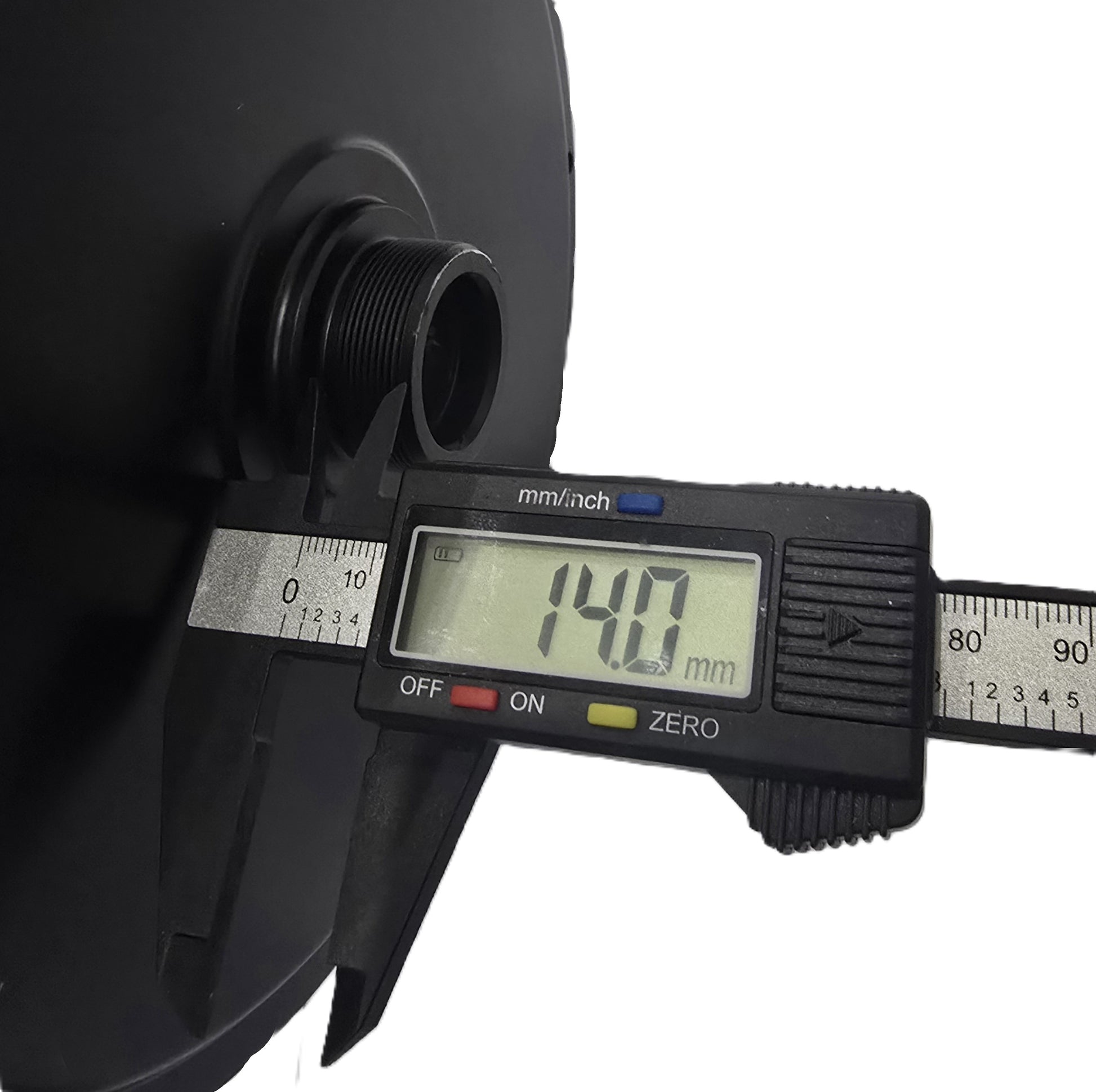

Note 3: 1500W, 2000W and 3000W Gear Side Covers are interchangeable, with differences in gear thread length only.

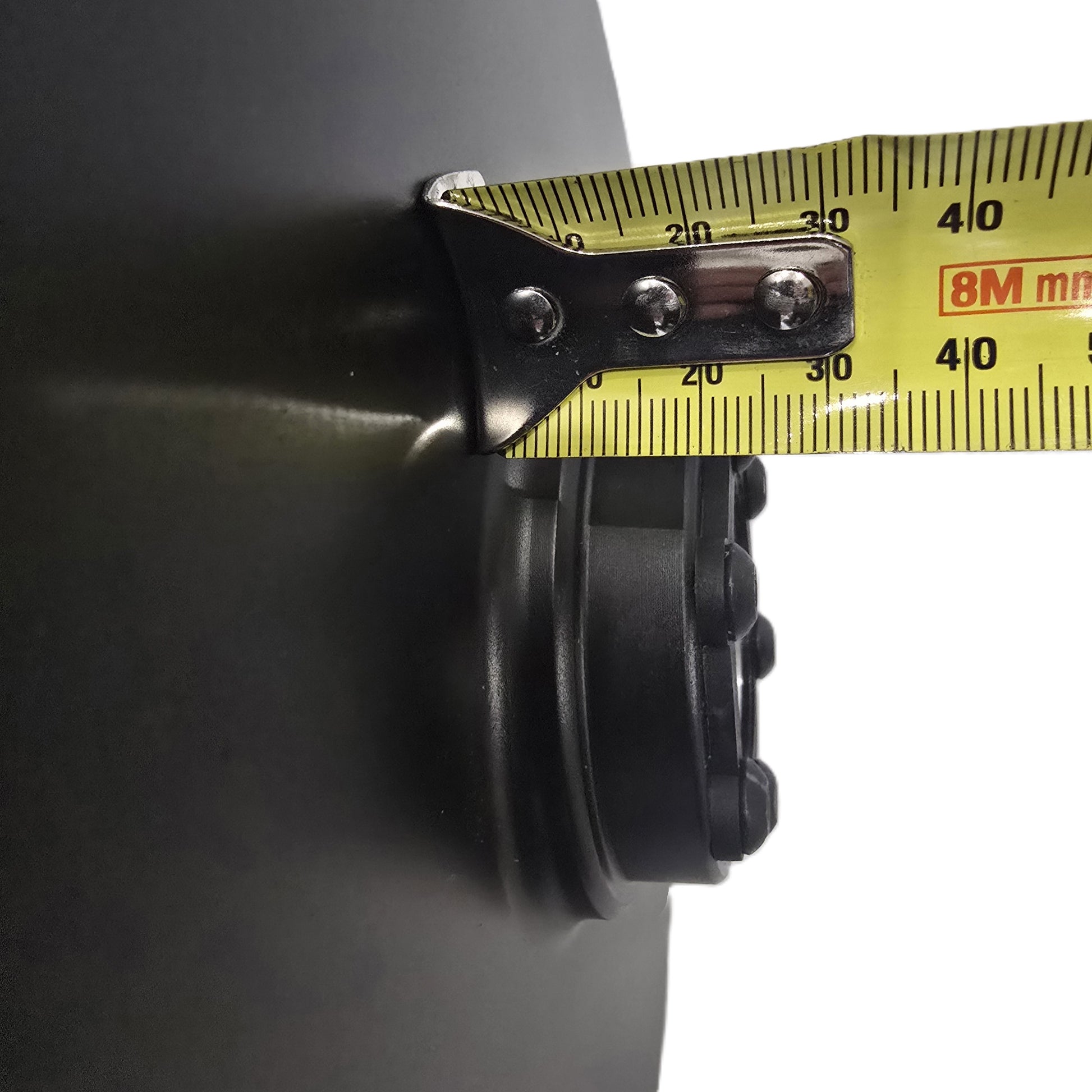

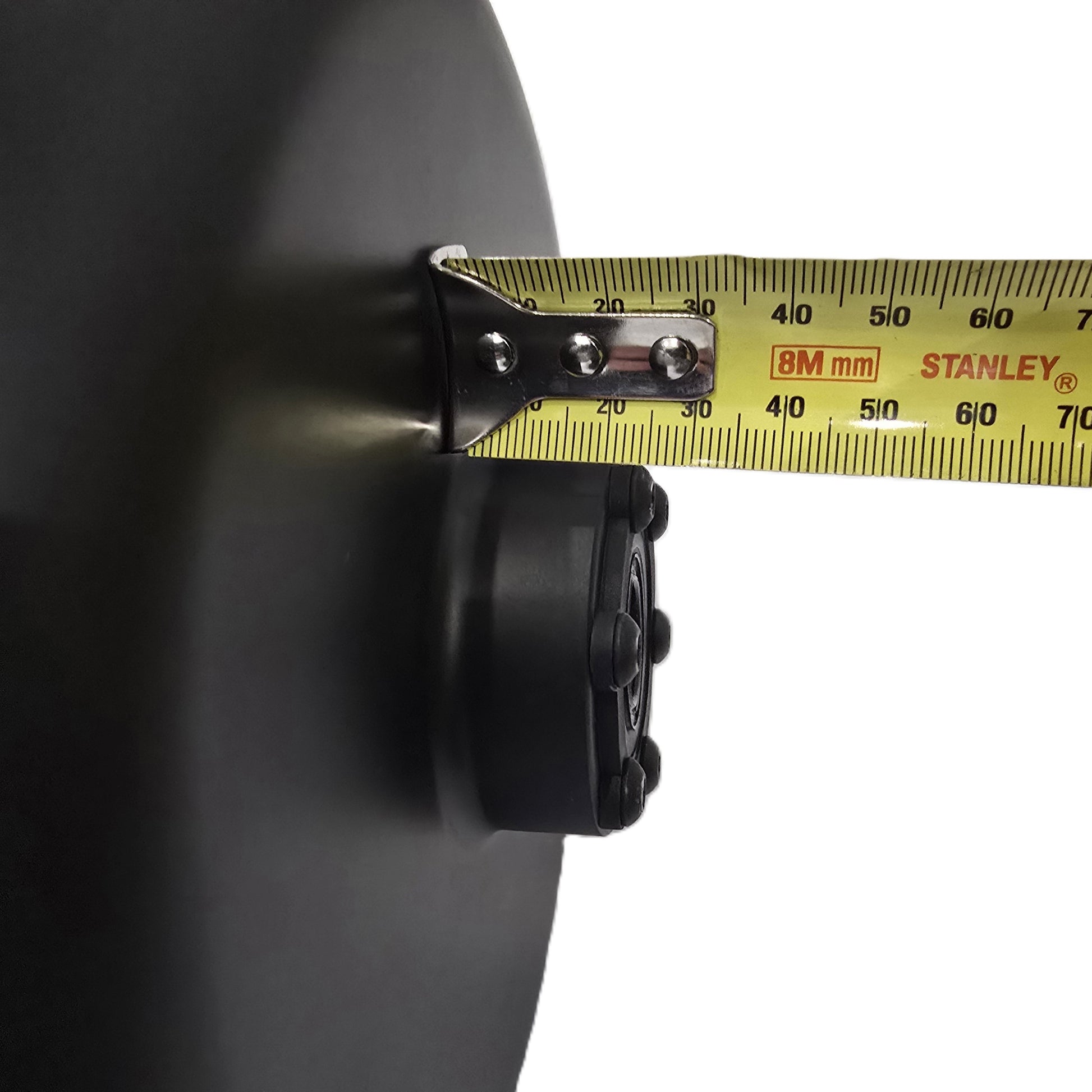

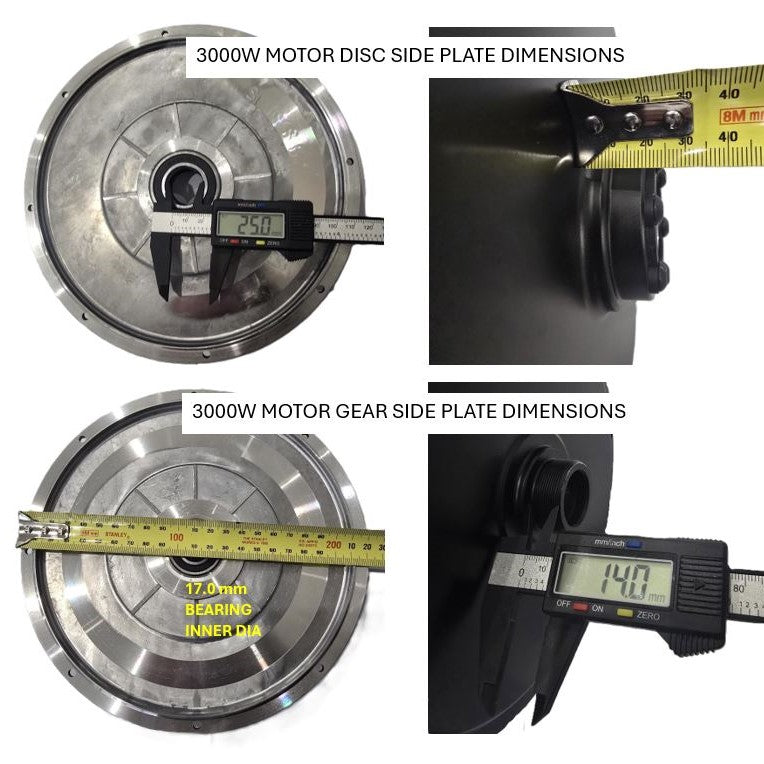

Note 4: 1500W/2000W Disc Side Covers vary significantly from 3000W Disc Side Covers due to differences in bearing inner and outer diameters, as well as plate extension/offset. The correct variant must be selected before purchase, as returns due to incorrect purchases are generally not accepted.

PACKAGE INCLUDES

• 1 x 1500W/2000W or 3000W Motor Side Cover/Plate (Choose Disc Side or Gear Side)

GEOMETRY

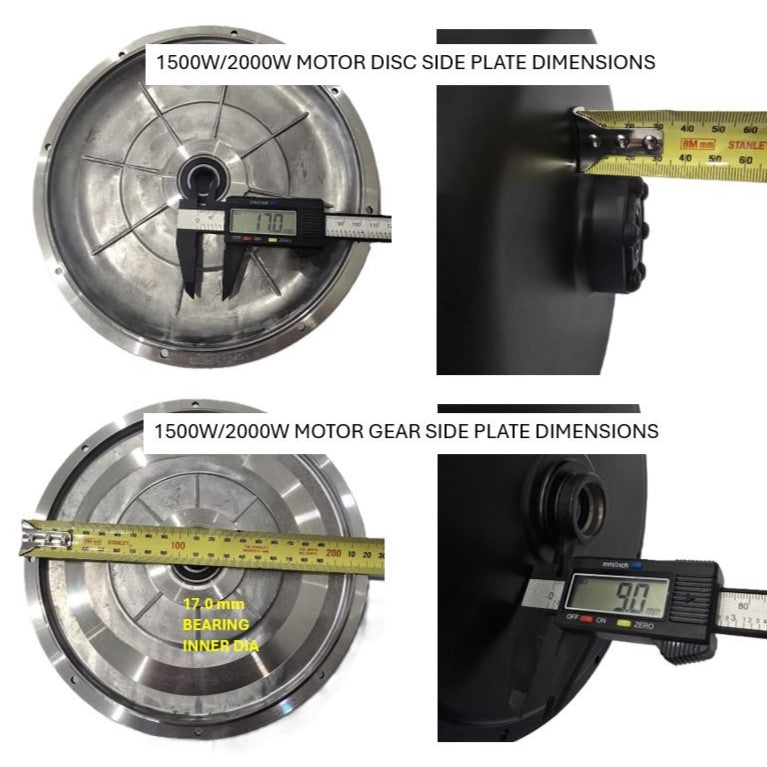

Refer to the photos for additional dimensions and identification details, or feel free to contact us if you have any questions.

• Bolt Pattern: 8 Bolts
• Bolt PCD: 210mm

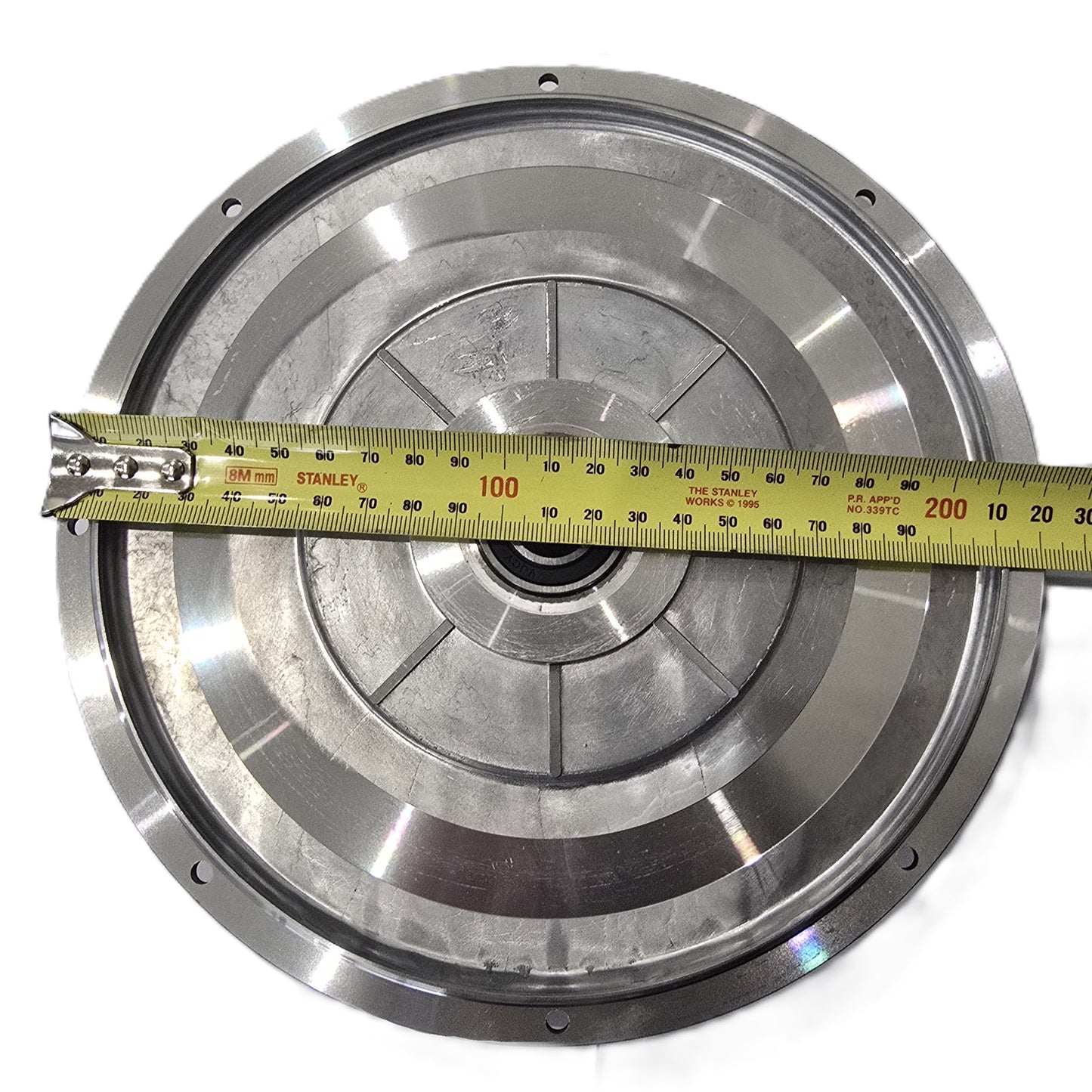

• Plate Diameter: 220mm

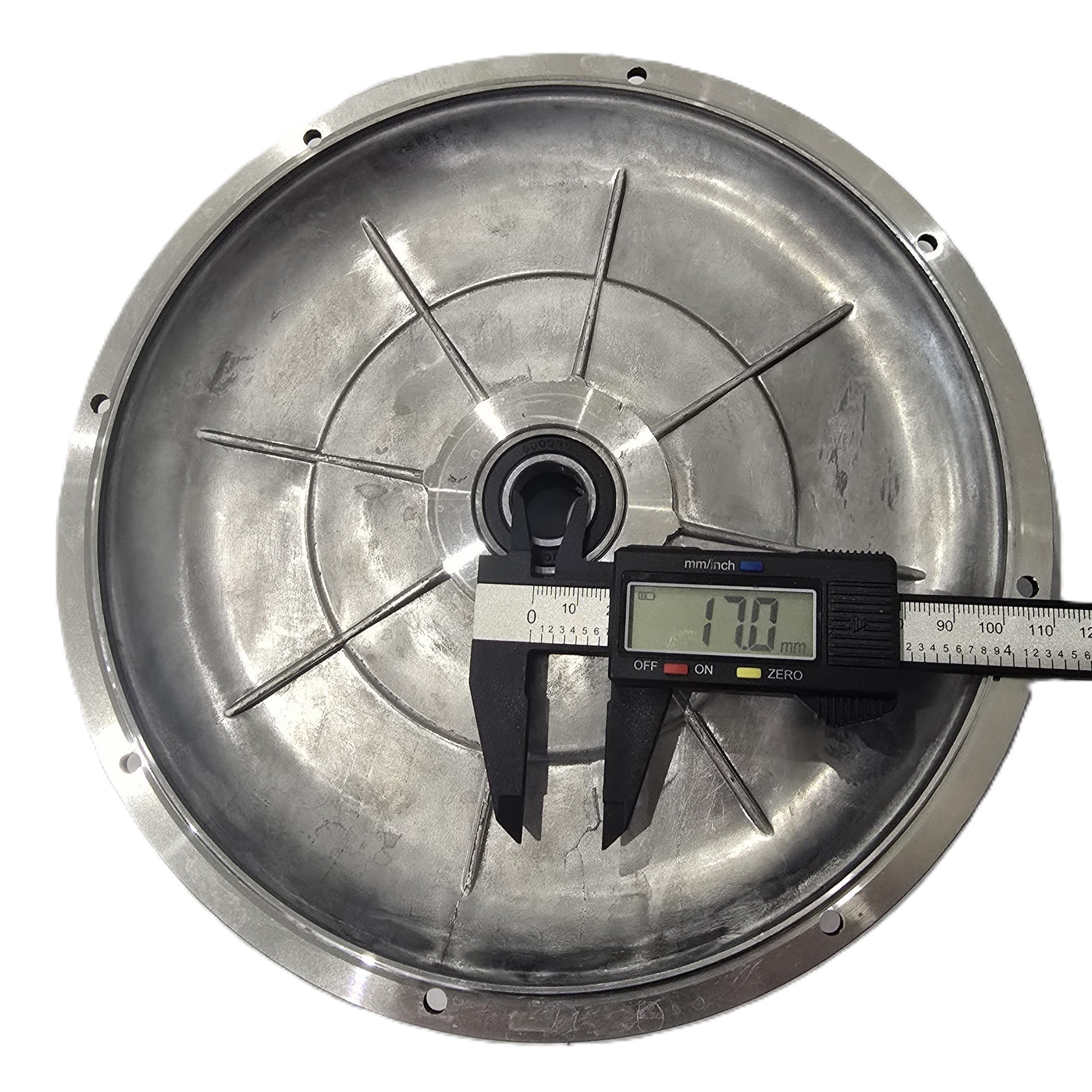

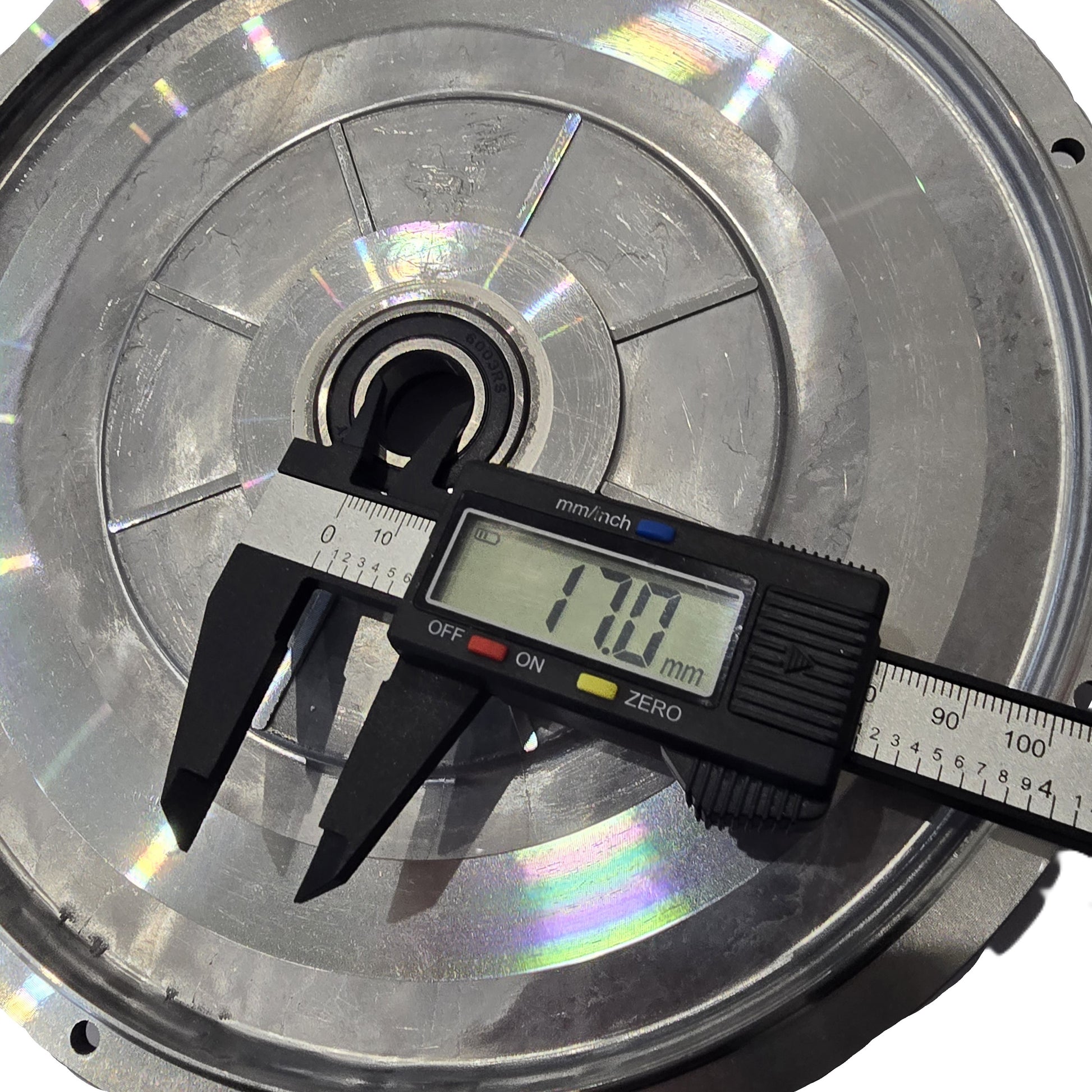

Bearings:

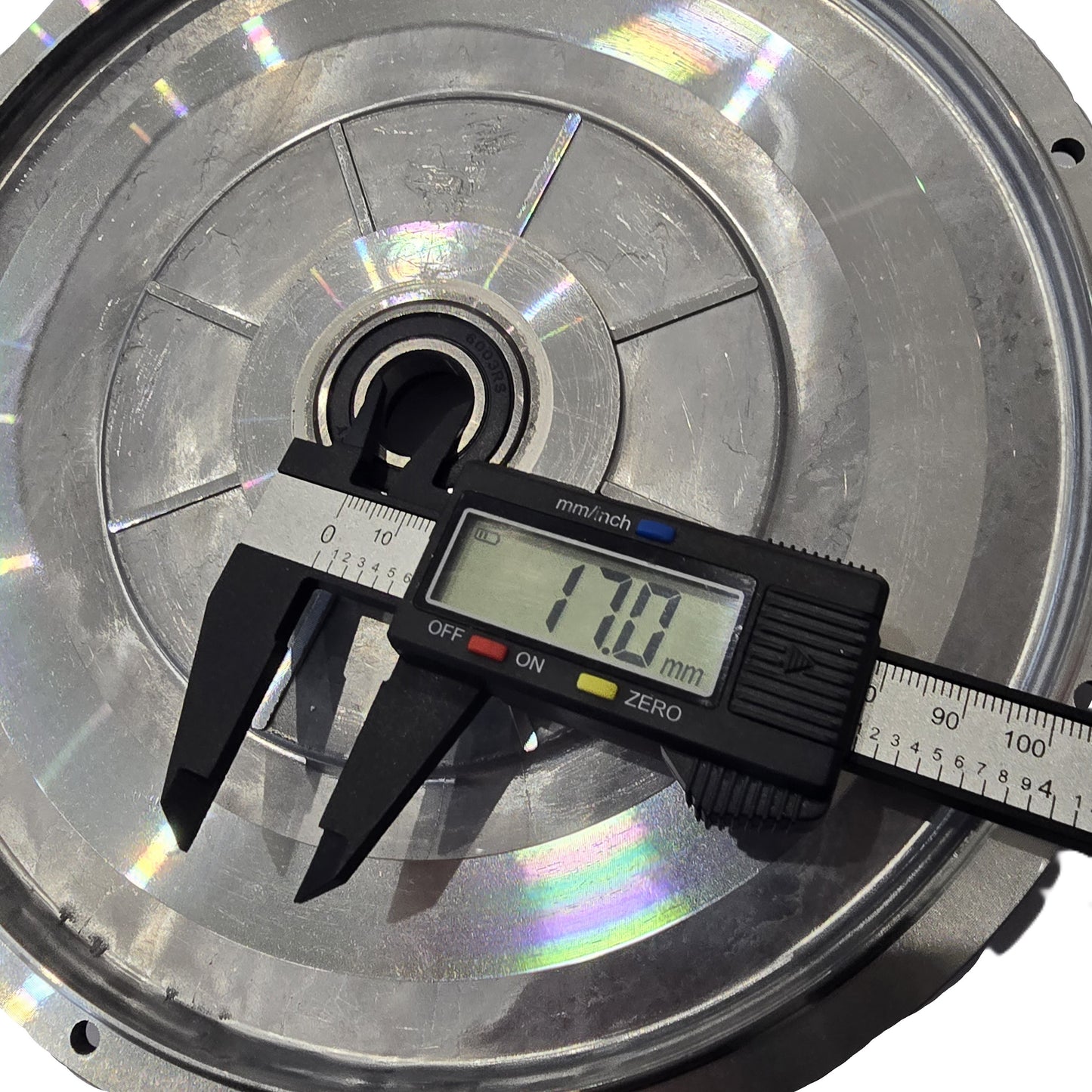

• 6003RS VJCY Bearing for:

• 1500W/2000W Disc Side Plate
• 1500W/2000W Gear Side Plate
• 3000W Gear Side Plate

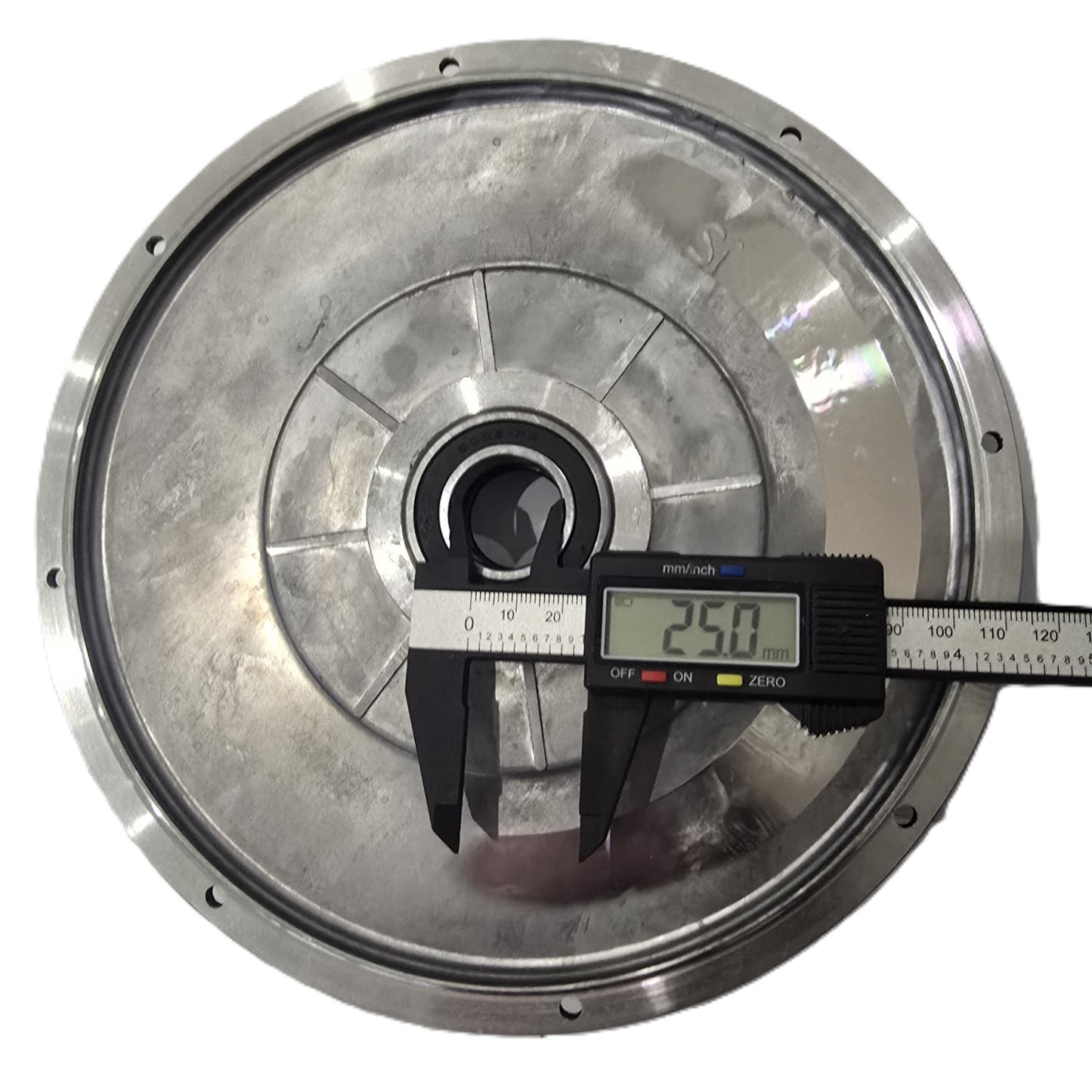

• 6005-RZ CHL Bearing for:

• 3000W Disc Side Plate Only

SUITS

• Wheel Type: Rear Wheel
• Motor Type: Brushless DC Direct Drive
• Power: 1500W to 3000W MTX Motors Only

INSTALLATION

This motor side cover (plate/case) should be installed by a suitably qualified professional, as it may require the existing motor wiring to be carefully fed through both the old and new (disc) side plates. Damage caused during handling or installation is not covered by warranty. If any issues are noticed upon receipt, you must contact us immediately before installation.
