E-Bike Custom Torque Plate – 3.0 mm Thick
E-Bike Custom Torque Plate – 3.0 mm Thick
For Electric Rear Hub Motors — Frame-Specific Fit
Couldn't load pickup availability
Typically, you will receive your order within one week unless otherwise specified at the top of the description*. We are a local store ready to assist you with any questions.
View full details
EBIKE TORQUE PLATE

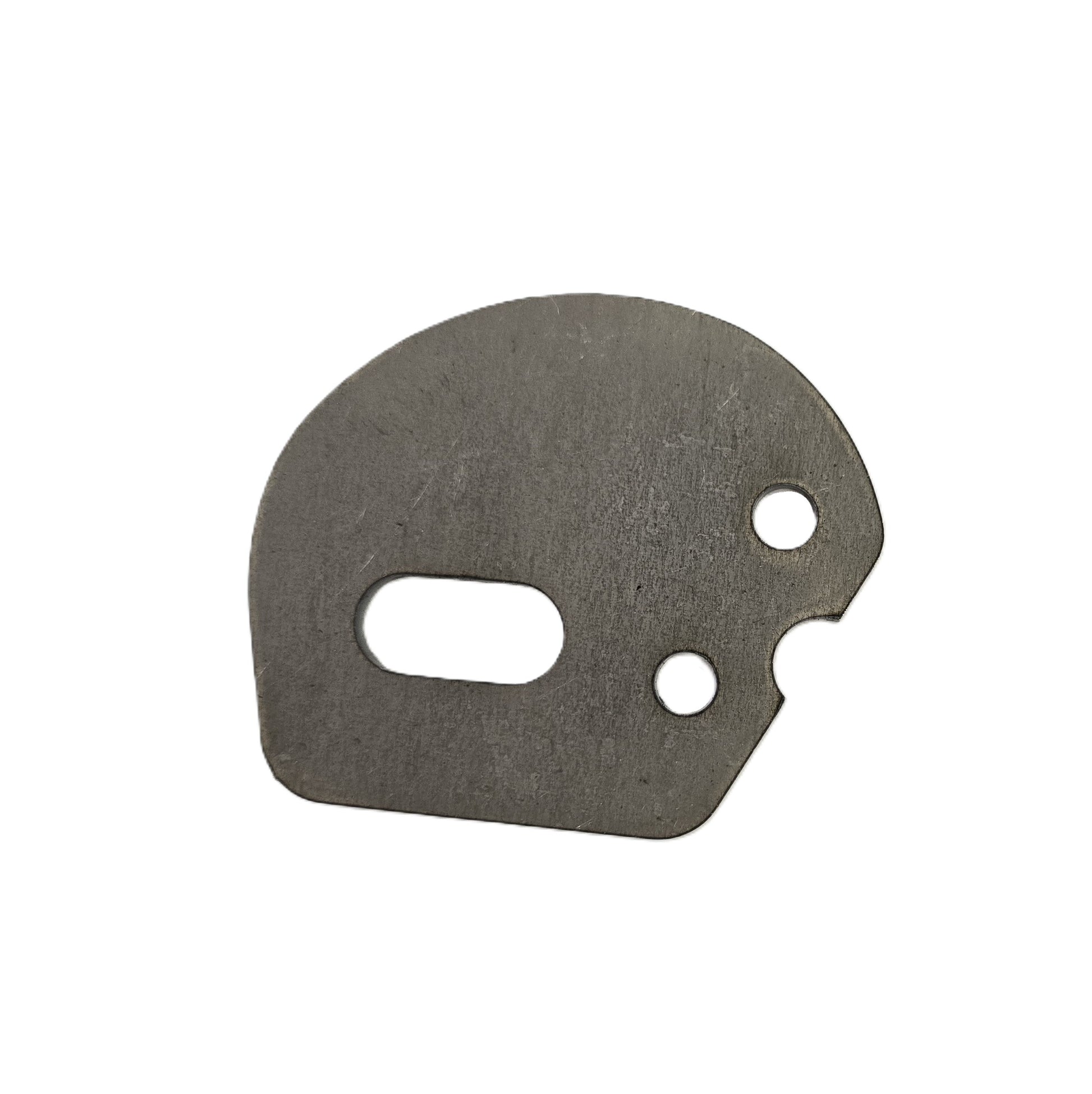

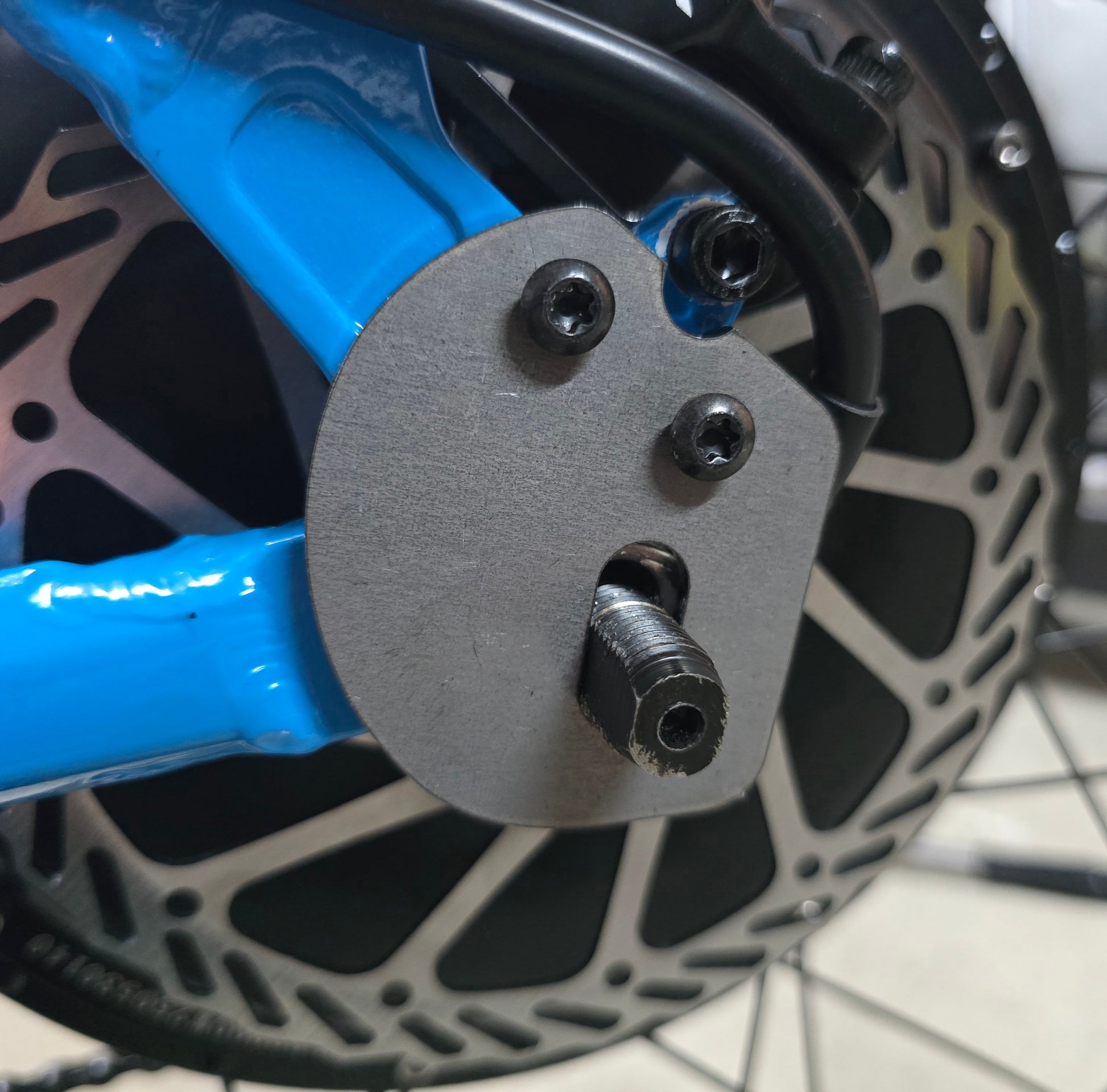

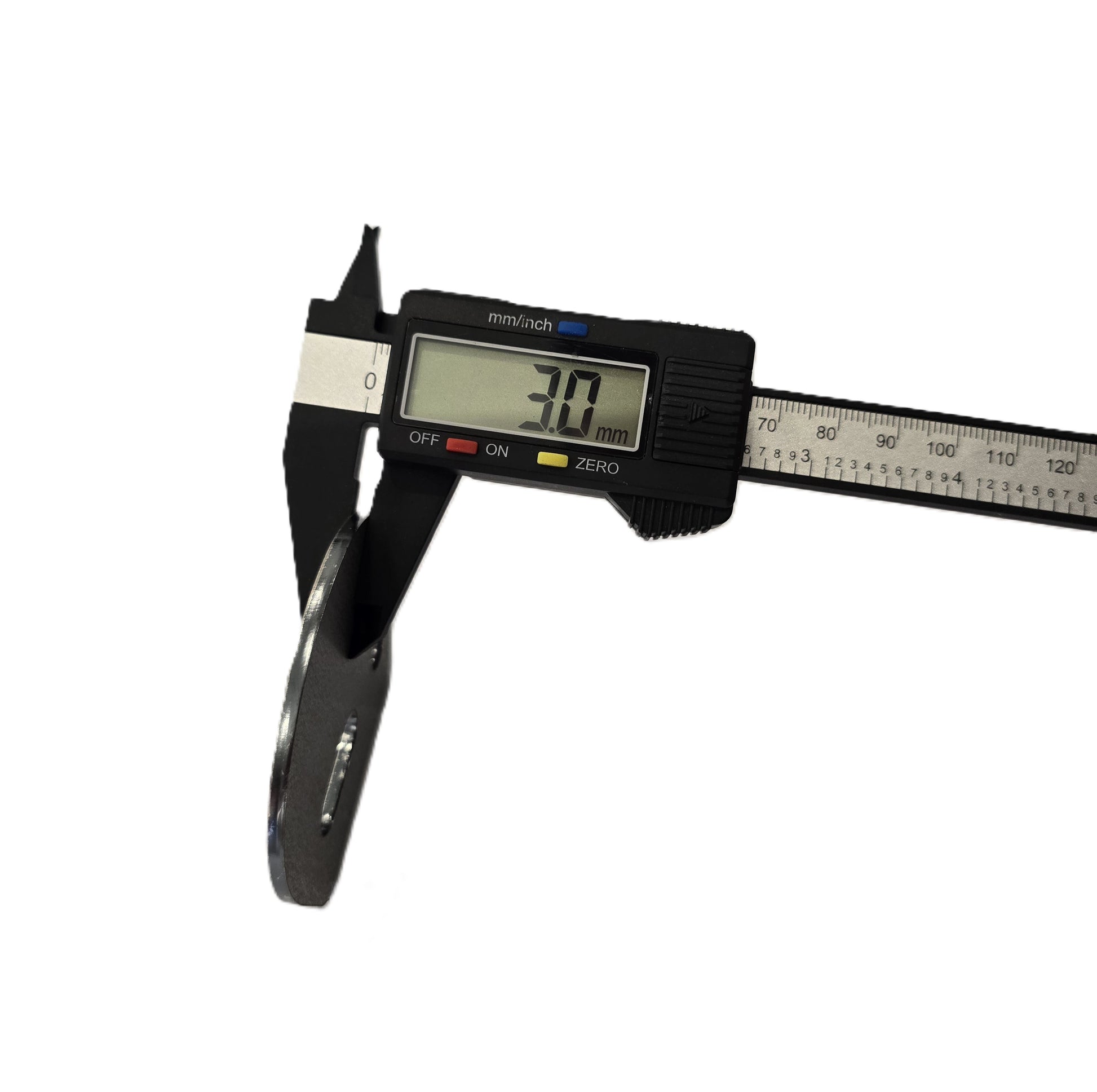

With a 3.0 mm thickness, this custom-fit EBike Torque Plate is stronger than standard torque arm kits. It’s designed to bolt directly onto your bike frame using two M5 bolts and a precisely machined slotted hole that locks onto the motor axle. This combination makes the plate safer than traditional torque arms, as it prevents the motor axle from rotating and stops the motor from slipping down or out of the dropouts.
Please check the listed bicycle frames this torque plate is designed to fit. It may also work with other frames that have a flat dropout surface and two suitable mounting points. In some cases, minor adjustments to the frame or slight slotting of the M5 bolt holes on the plate may help with compatibility—however, any modifications should only be carried out by someone confident and experienced, as incorrect changes can compromise safety.

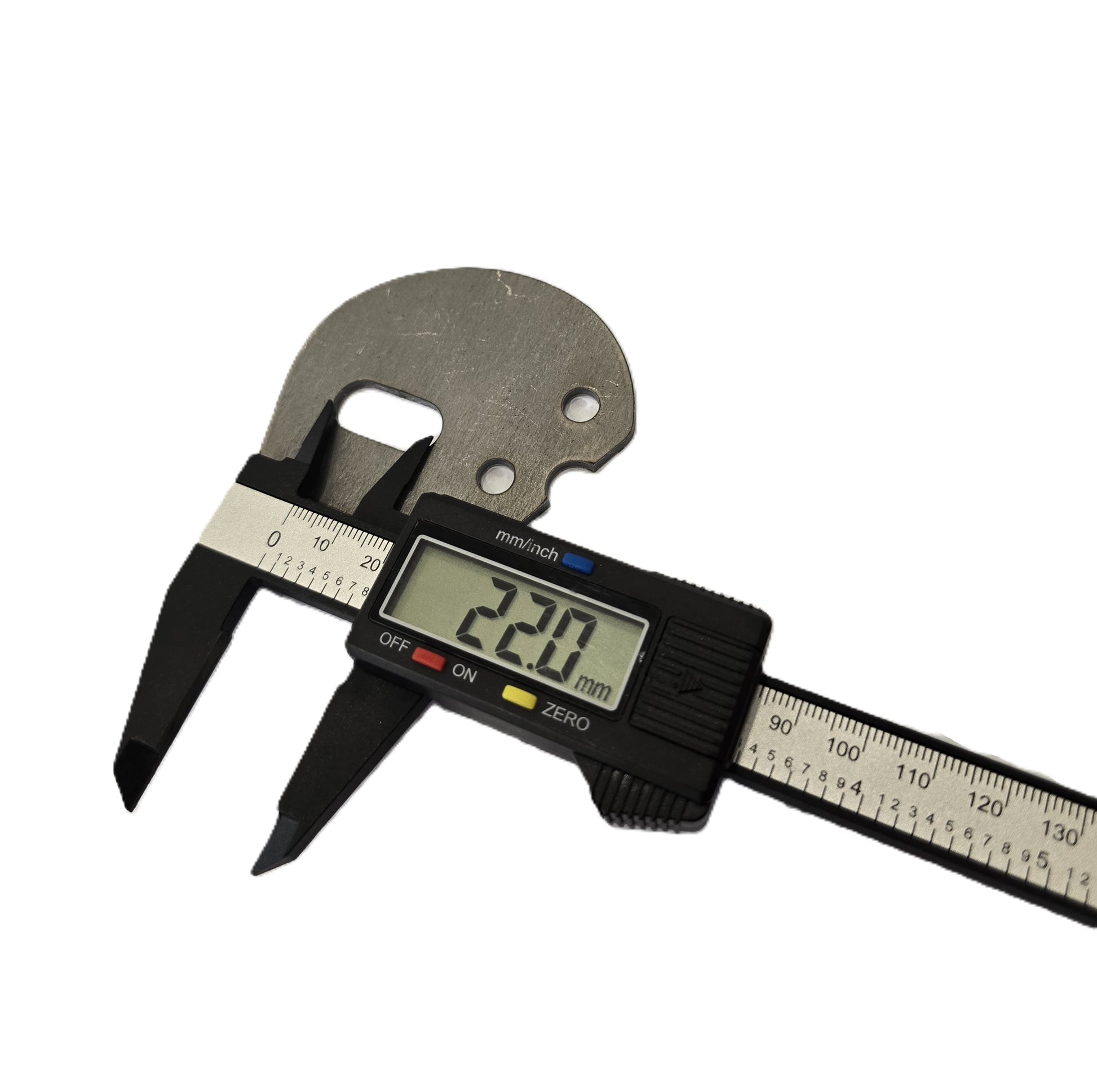

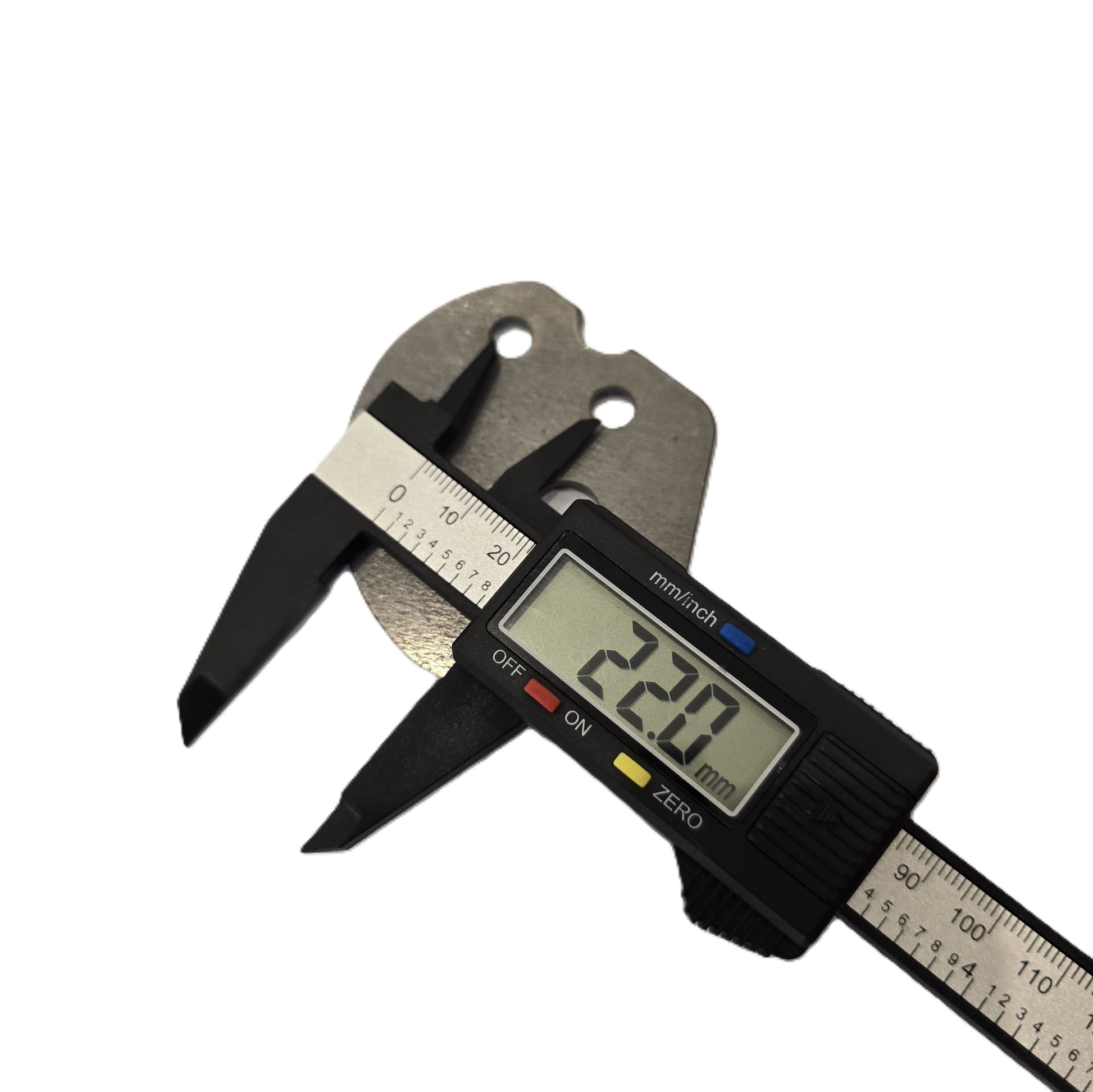

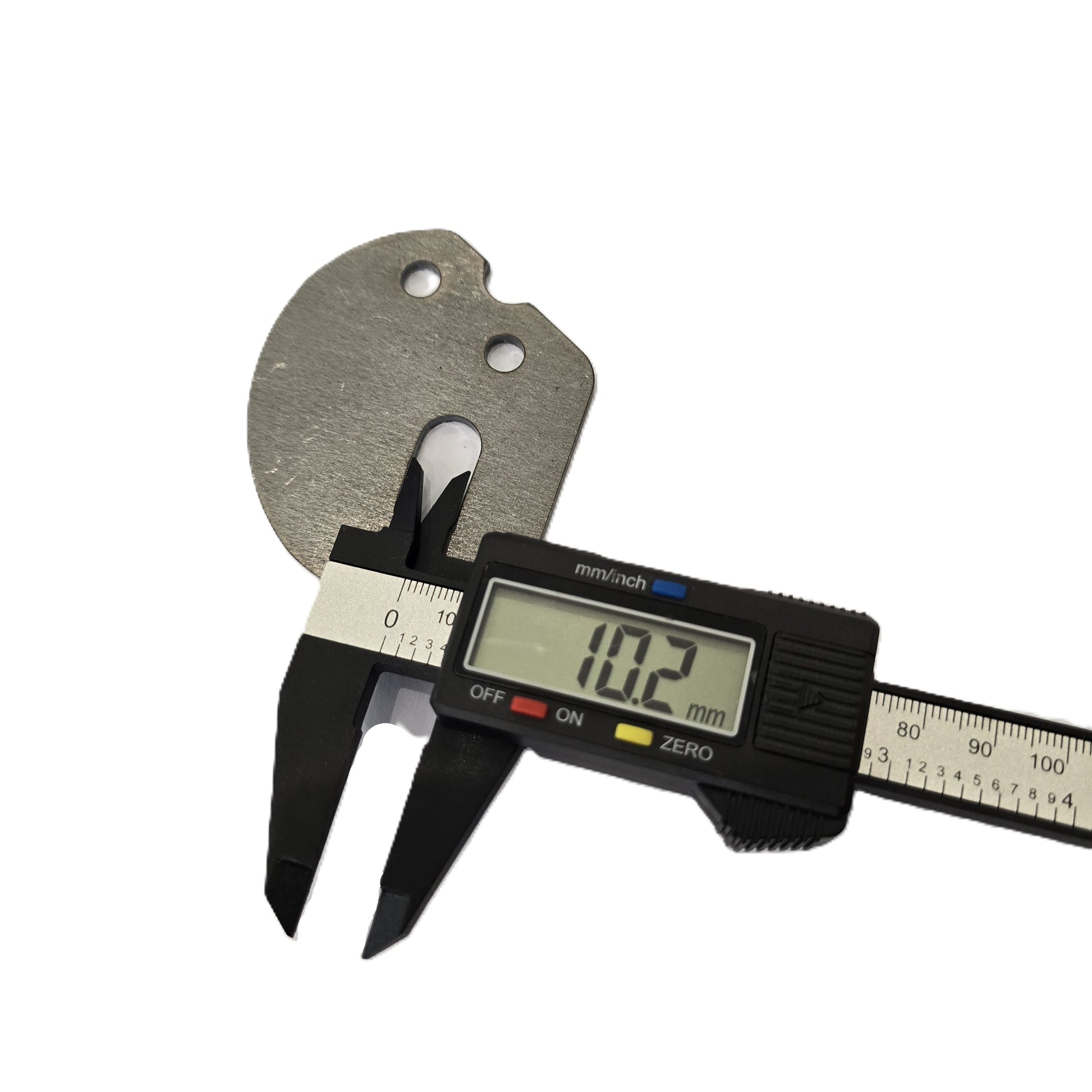

For stronger 1000W+ EBikes, we recommend using two torque plates (one on each side). It has a 10 mm × 22 mm slotted hole, making it compatible with most 500W–3000W rear hub EBike motor axles.
PACKAGE INCLUDES
- 1 x 3.0mm thick Mild Steel Torque Plate*
*with 10mm x 22mm slotted hole and 2 No. 6mm dia. bolt holes
COMPATIBILITY
- Compatible Bicycle Frames:
- Trinx M136
- Trinx M600
- Compatible Electric Motors:
- Rear Hub Motors Only
- MTX kit Compatible - 1000W, 1500W, and 3000W rear hub motors with 10mm axles
