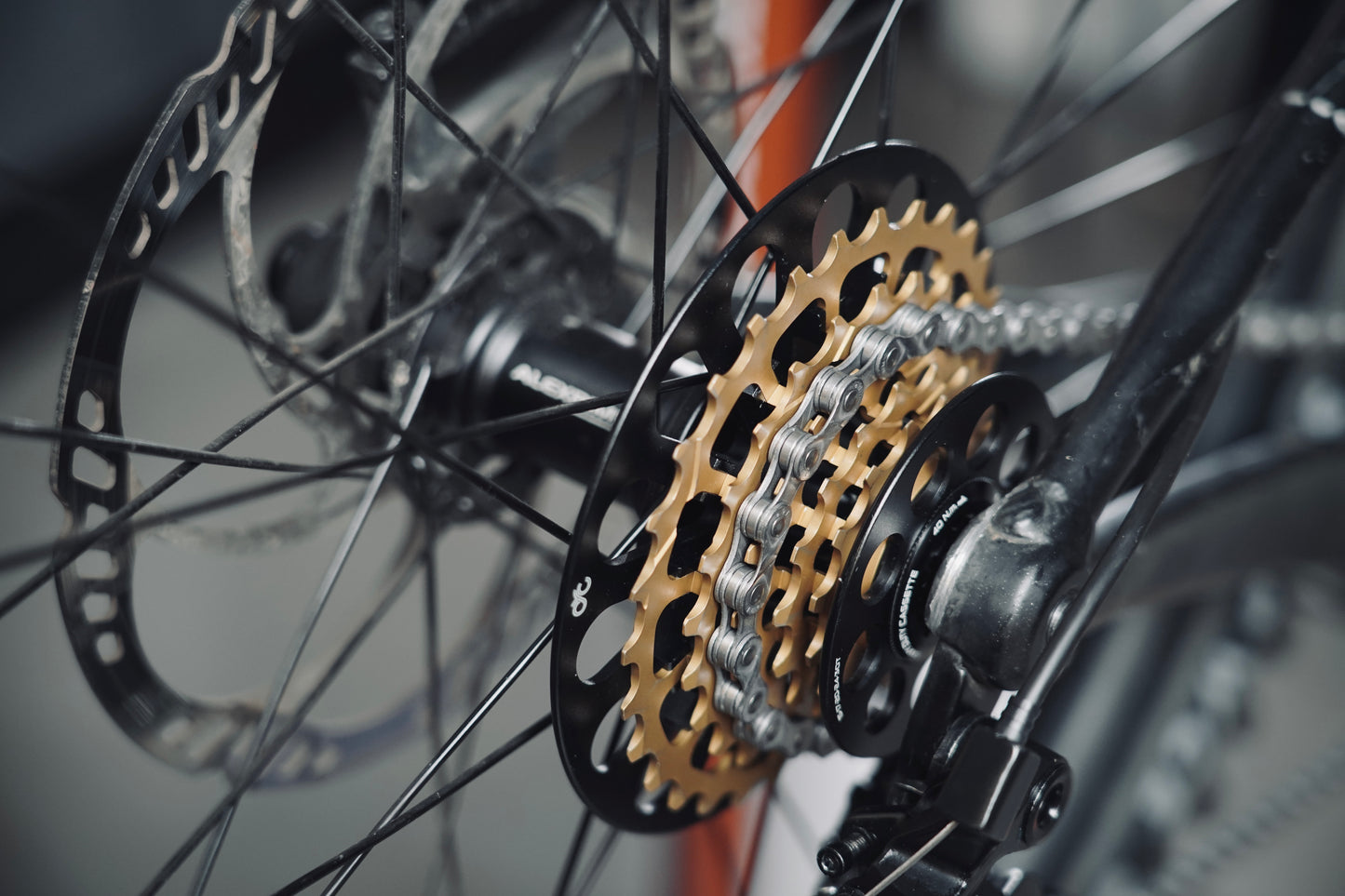

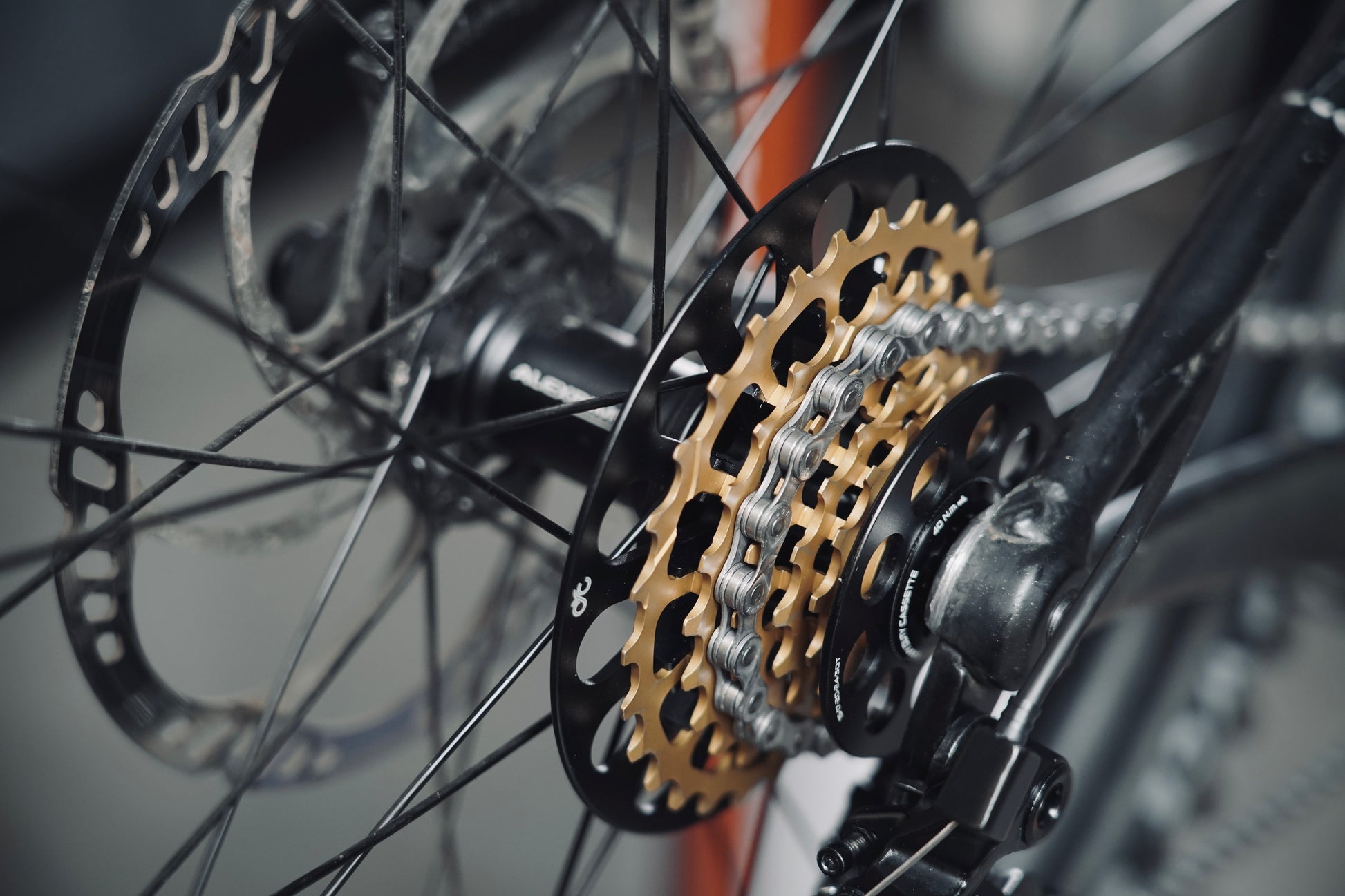

CYC HEAVY-DUTY DRIVETRAIN

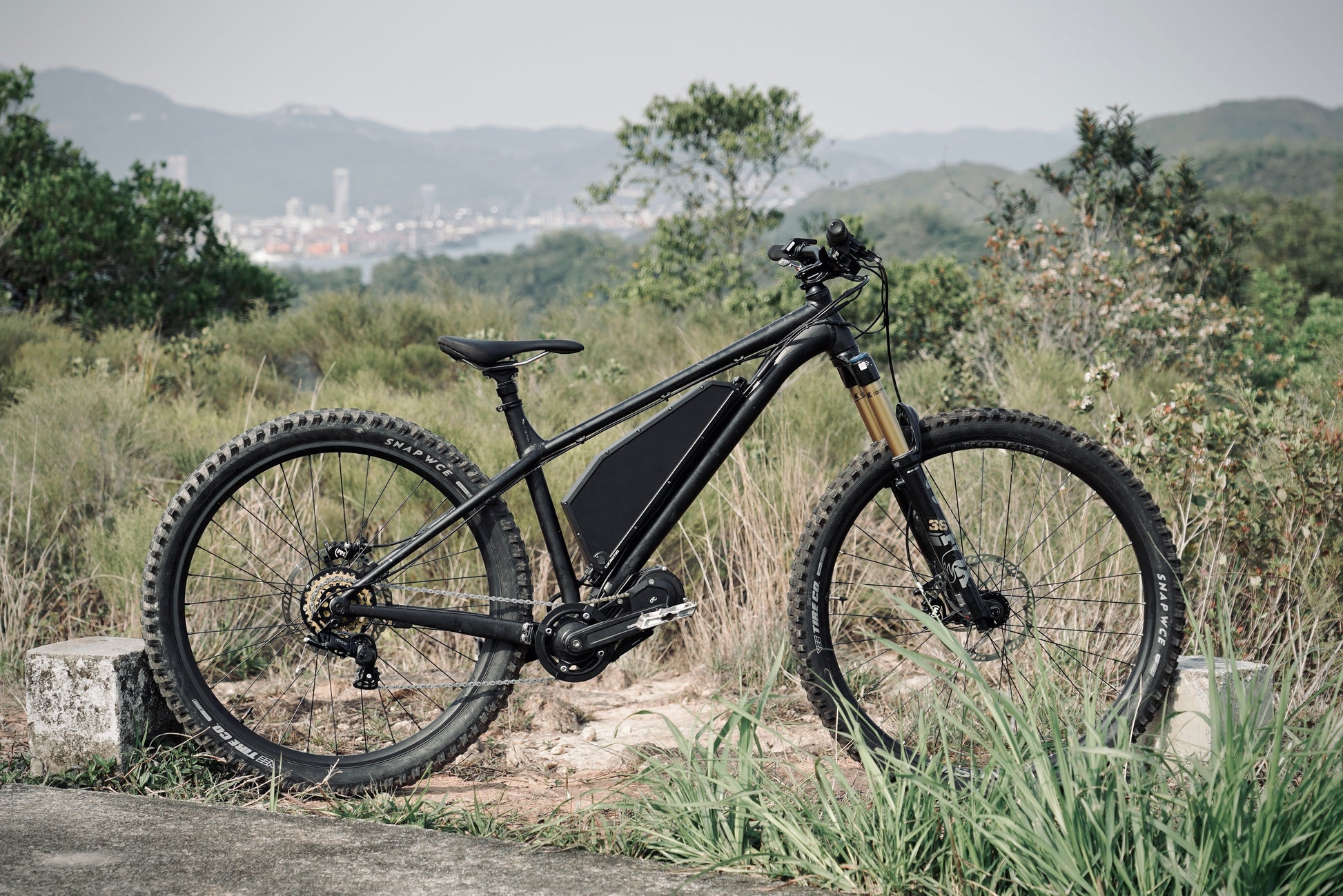

Upgrade your mid-drive e-bike with the CYC Heavy-Duty Drivetrain, designed for strength, reliability, and long-lasting performance. The 5-speed cassette, built from tough Chromoly steel and Aluminium 7075, provides smooth shifting and efficient power transfer. Paired with the AlexRims hub and Microshift components, this setup is ready for demanding trails and high-torque riding. Built strong, built for torque.

SYSTEM COMPATIBILITY

  • All CYC mid-drive motor systems

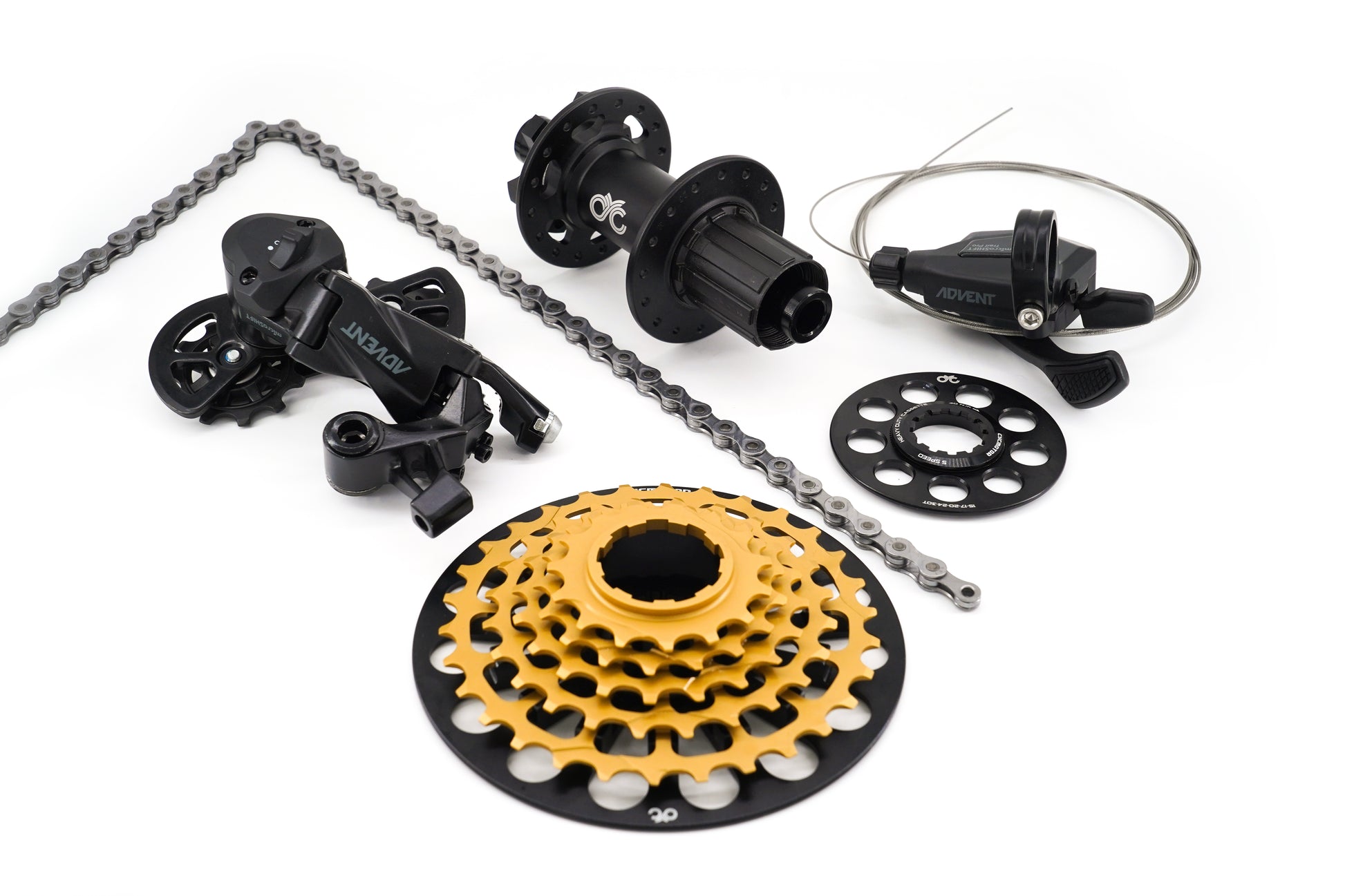

INCLUSIONS

  • Heavy-Duty 5-Speed Cassette

  • E-Bike Rear Hub

  • Microshift Advent Shifter and Rear Derailleur

  • KMC e9 Turbo EPT Chain

SPECIFICATIONS

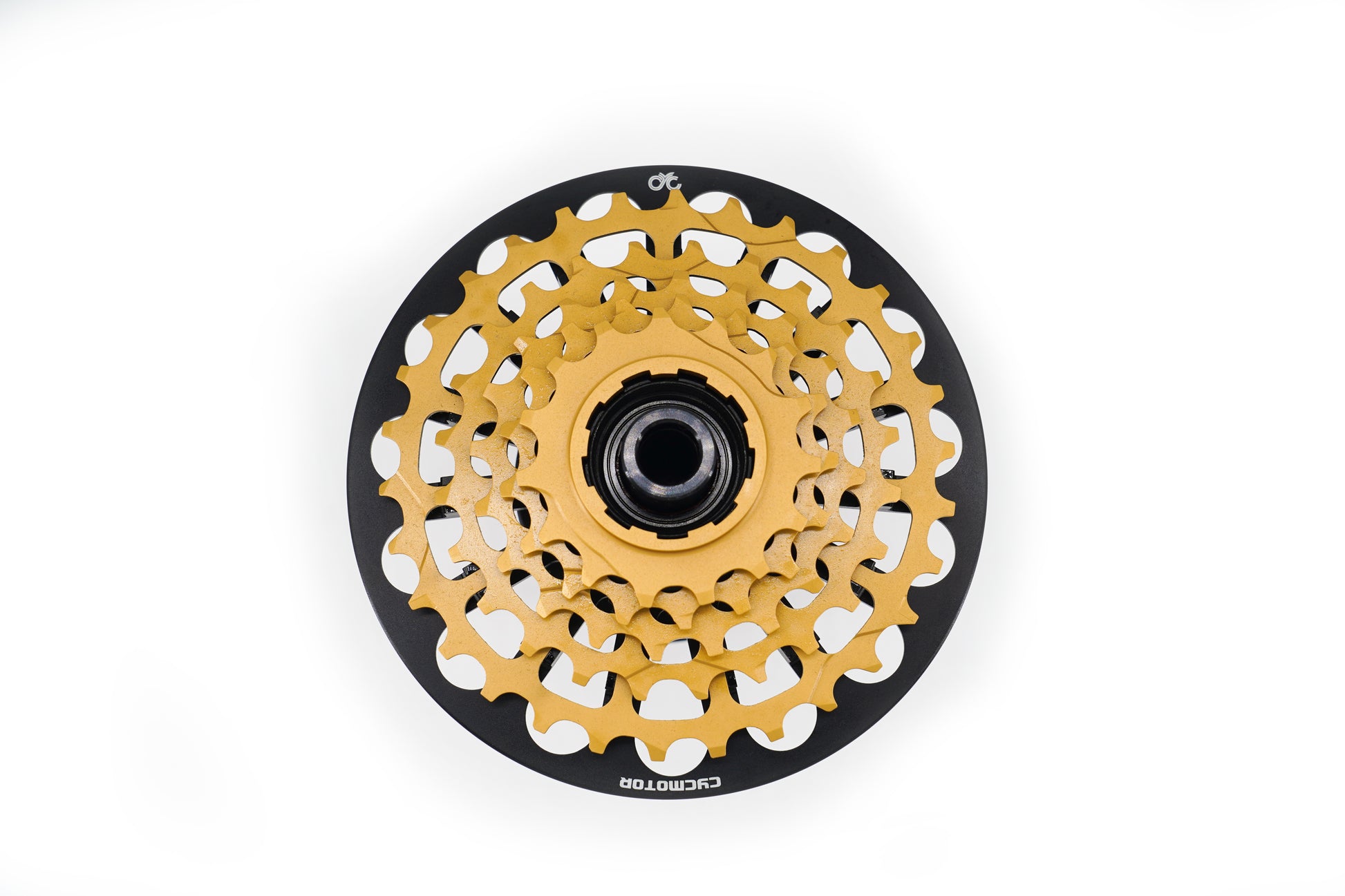

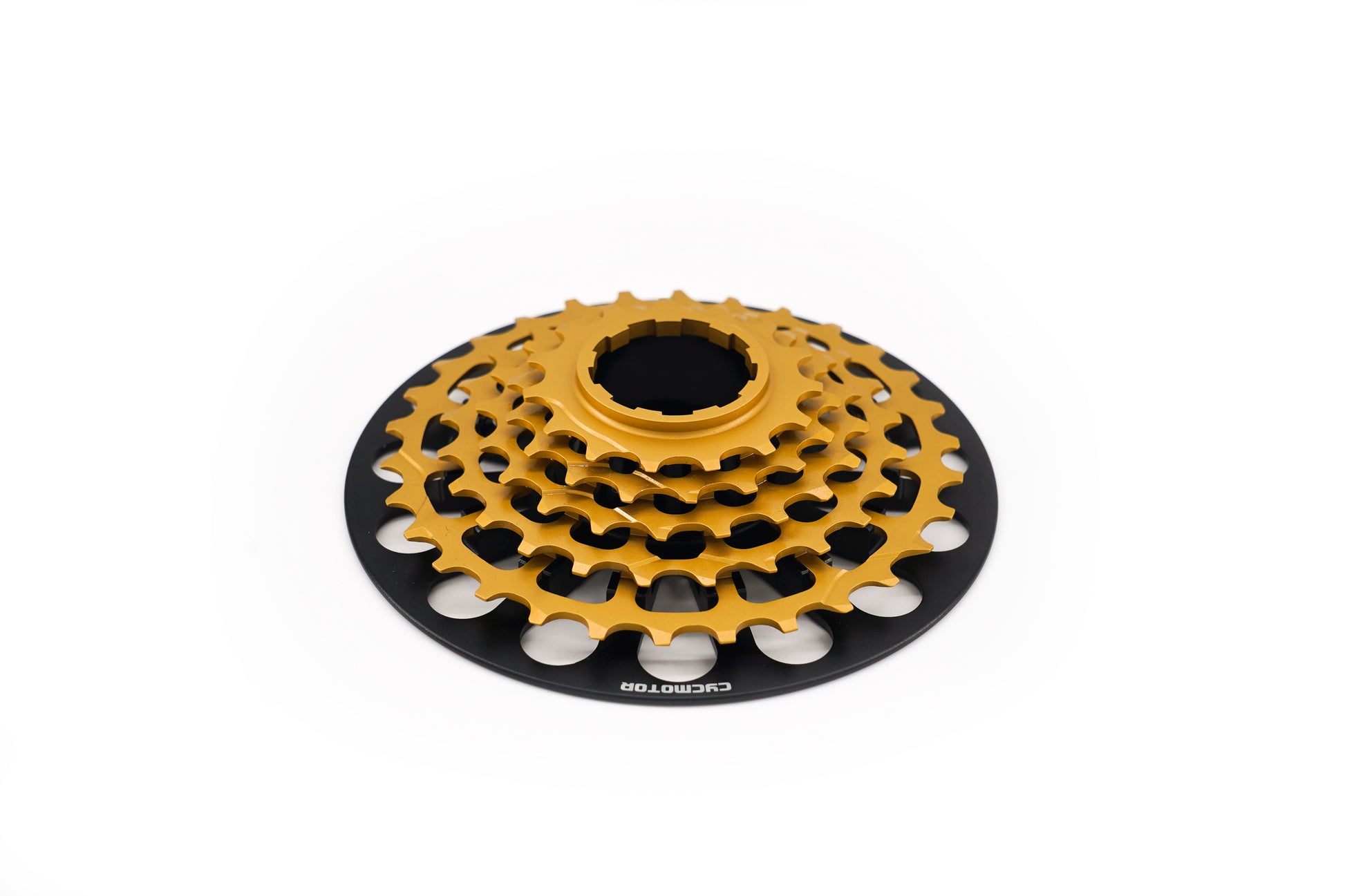

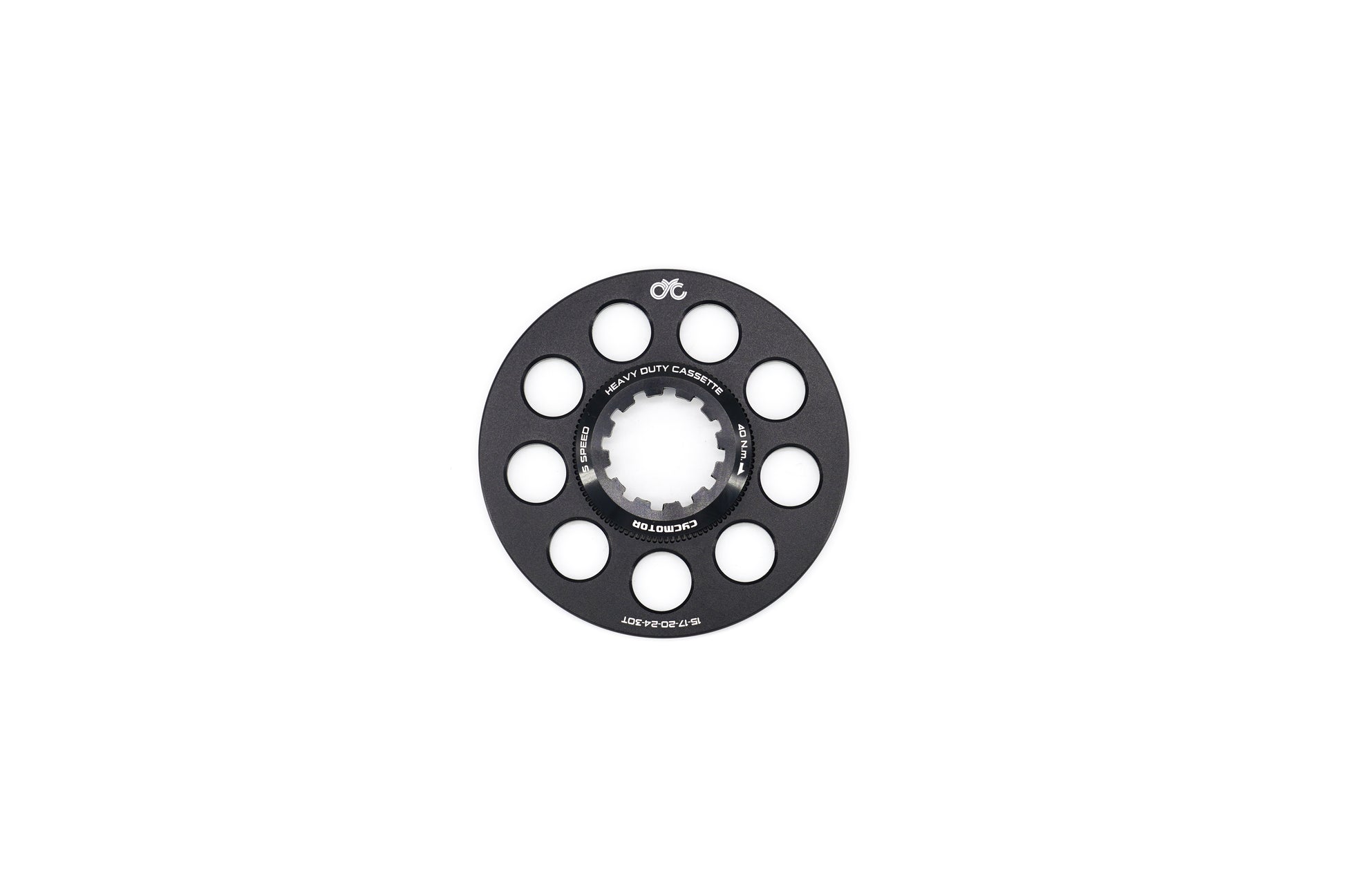

Cassette

  • Heavy Duty 5-speed Cassette

  • Speed: 5-speed

  • Gearing: 15-30T; 15-17-20-24-30T

  • Material: Chromoly steel, Aluminium 7075

  • Optimum/Operating chainline:

    • 51.7mm centre (20T)

    • 60.7mm final cog (15T)

    • 42.7mm 1st cog (30T)

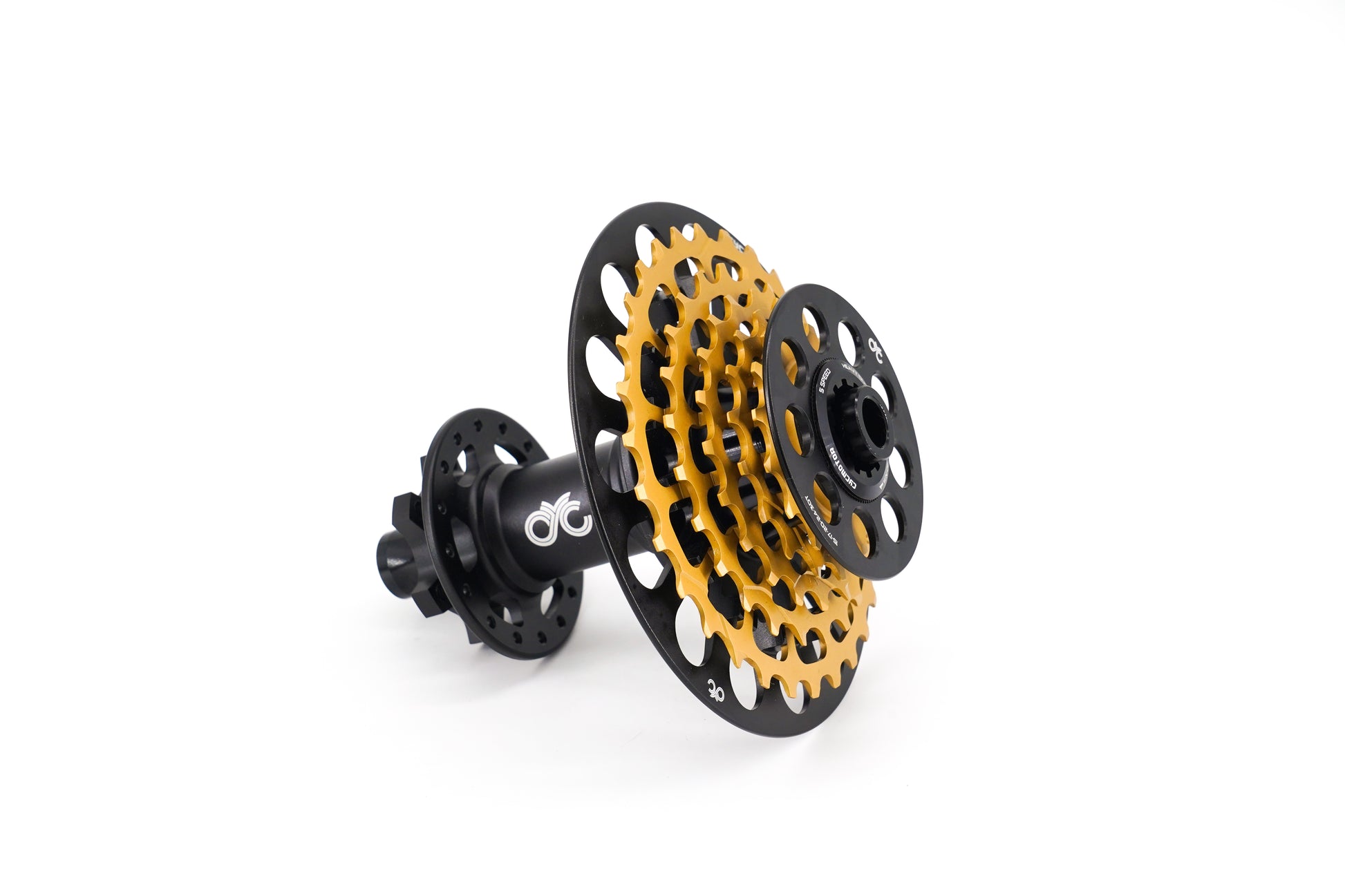

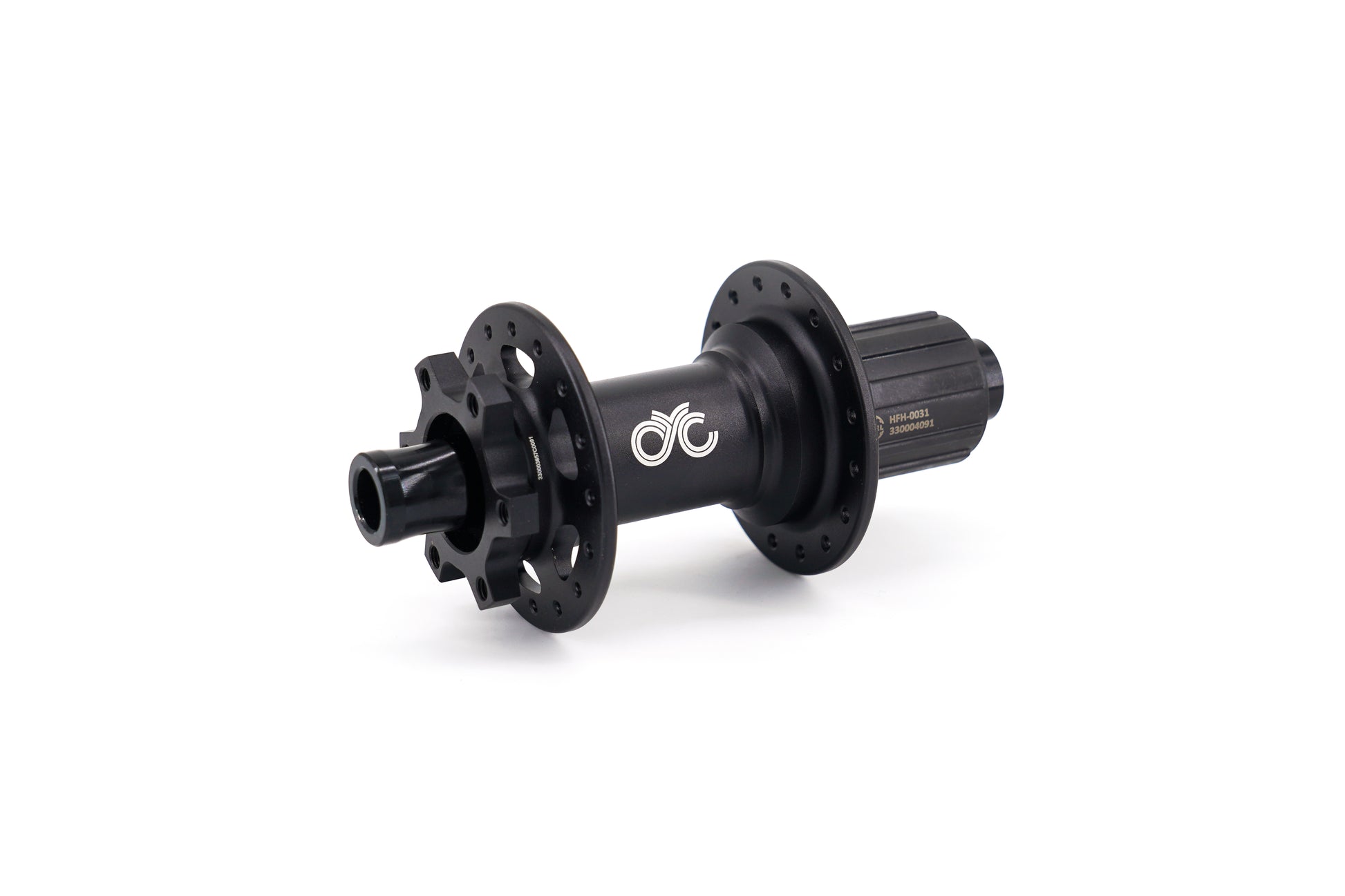

Hub

  • AlexRims e-Bike Rear Hub

  • Model: 5SB

  • Engagement Points: 24 (15 degrees)

  • Freehub Type: Ratchet-type, Steel Shimano HG (3SB IMPEL 24T)

  • Axle Type: Steel thru-axle

  • Spoke Configuration: J-Bend

  • Brake Compatibility: 6-Bolt Disc

  • Axle Dimensions: 12mm x 148mm OLD

  • Finish: Sanded Black

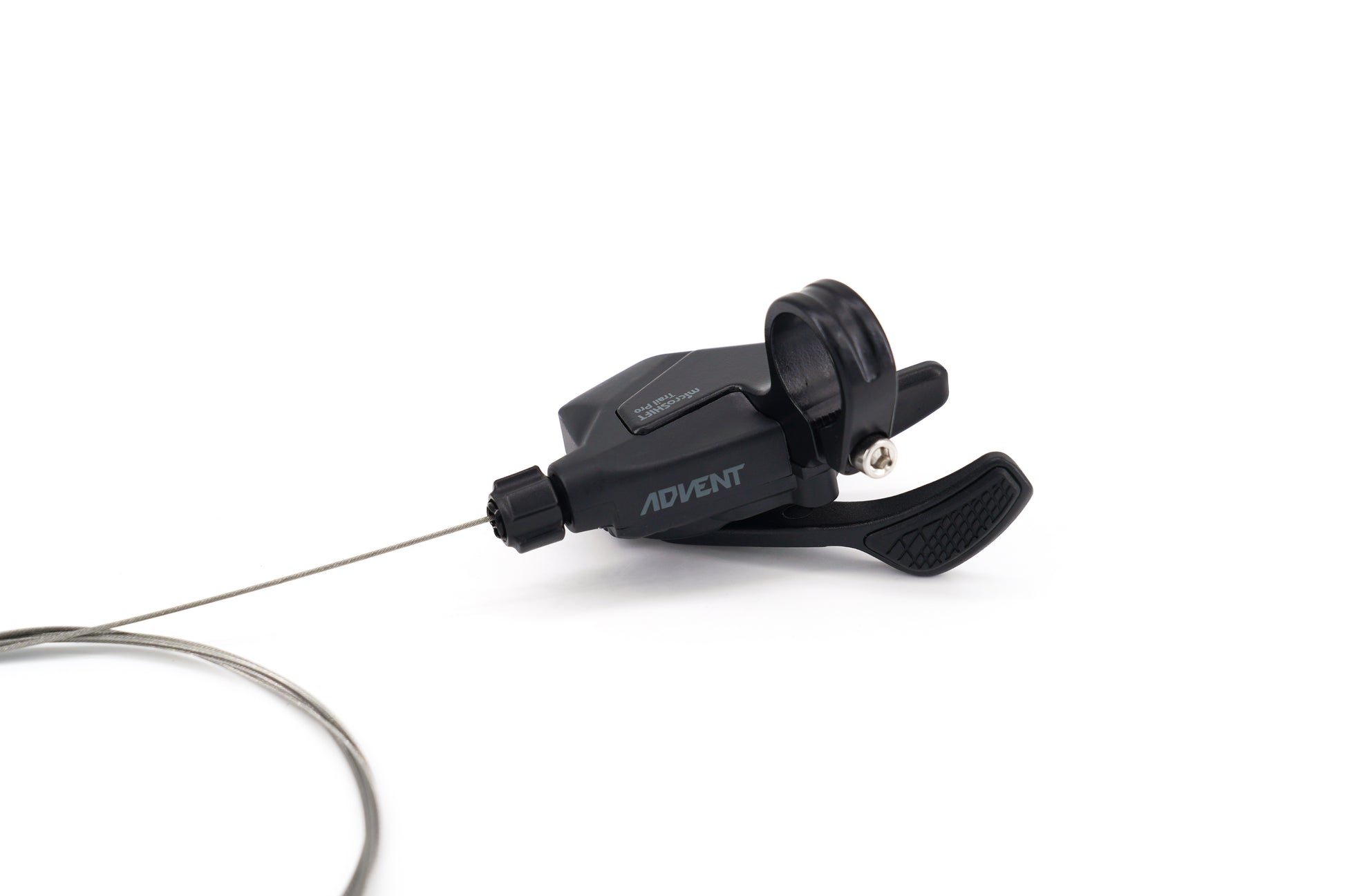

Shifter

  • Microshift Advent Trail Pro Shifter

  • Single Click

  • Side: Right

  • Clamp Material: Aluminum

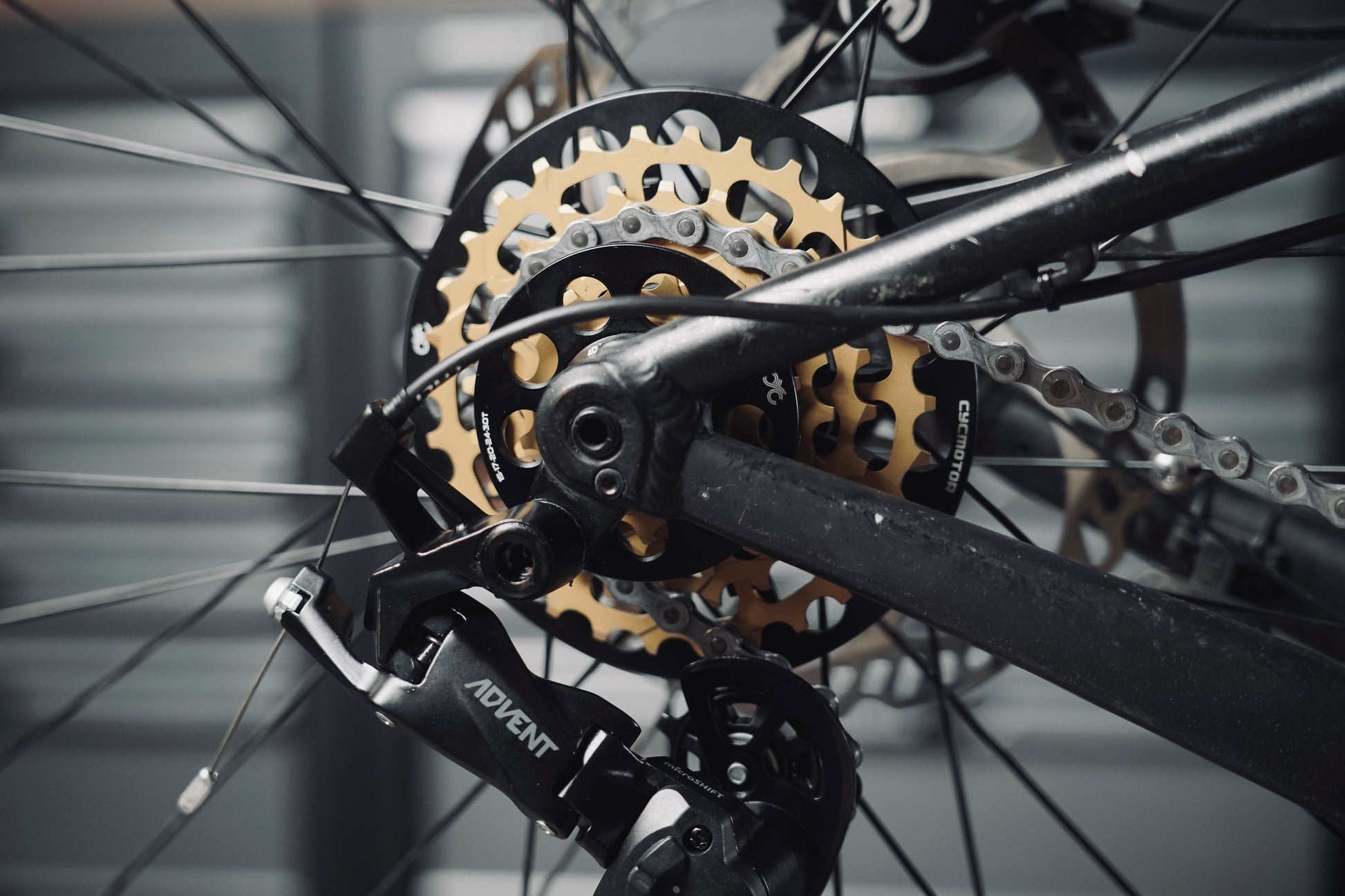

Derailleur

  • Microshift Advent Super Short Cage Clutch Derailleur

  • Model: RD-M6195S

  • Cage Material: Steel

  • Outer Link Material: Aluminum

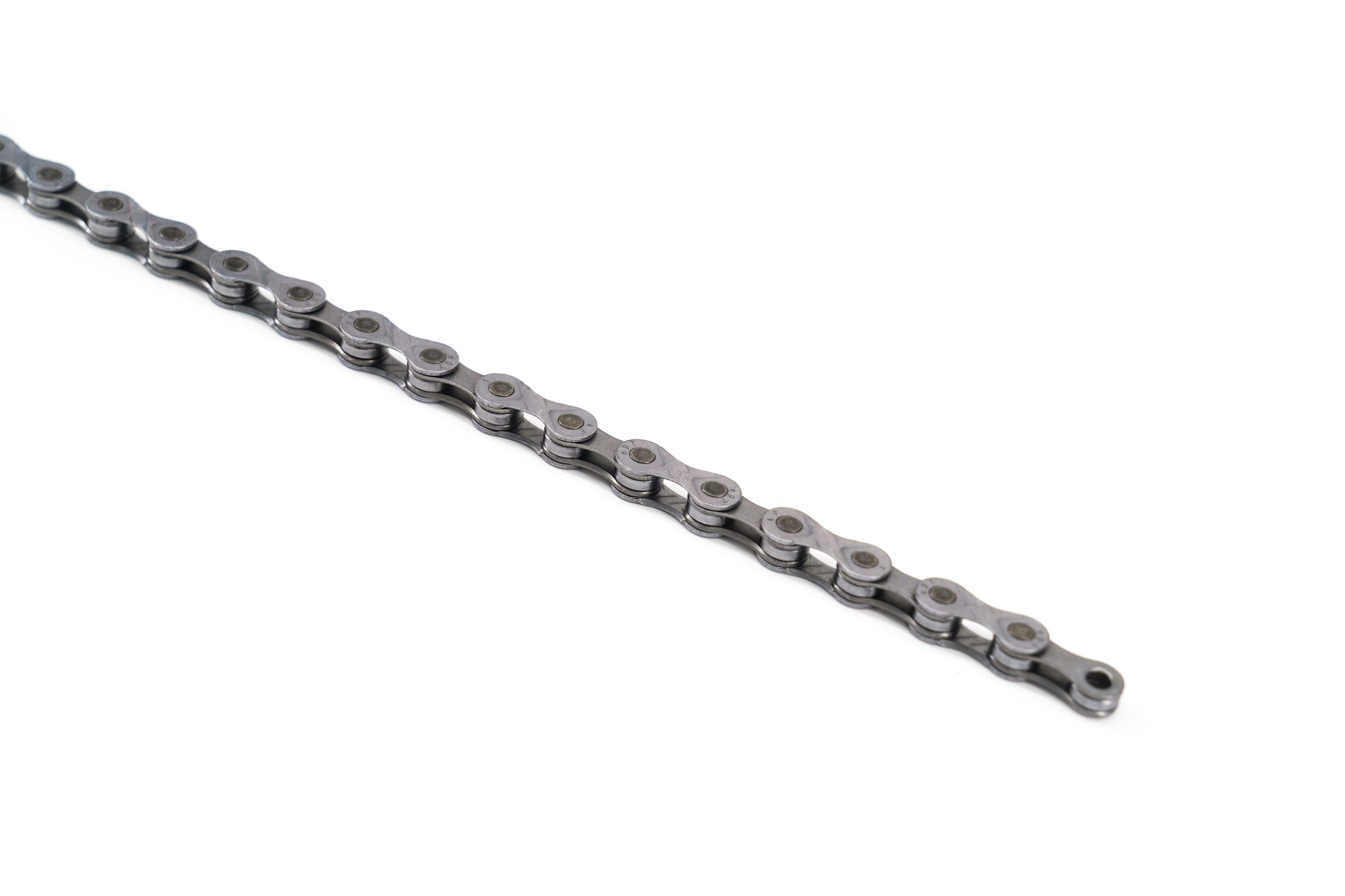

Chain

  • KMC e9 Turbo EPT chain

  • EPT (Anti-rust)

  • 1/2"x11/128"x136 Links
