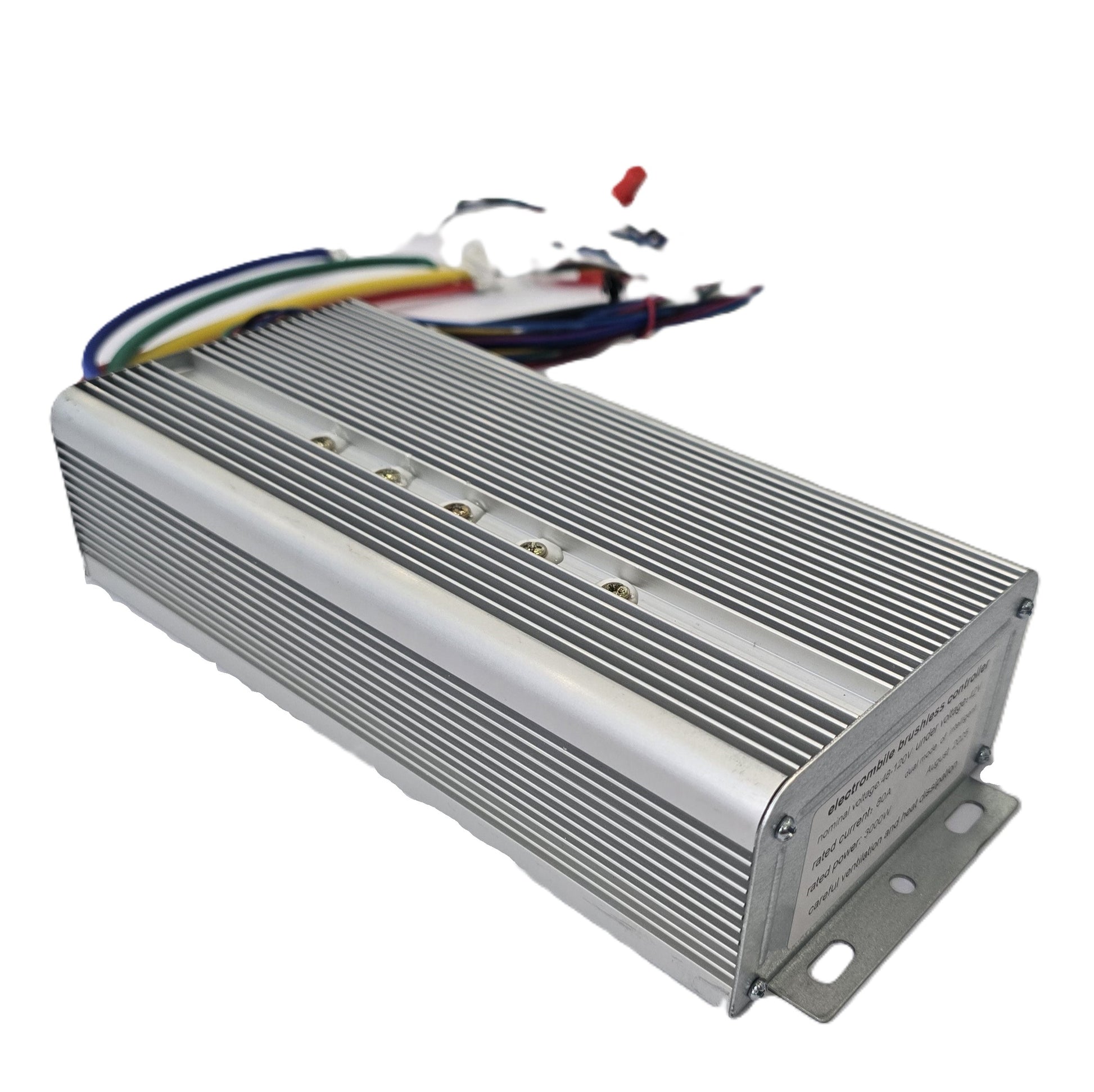

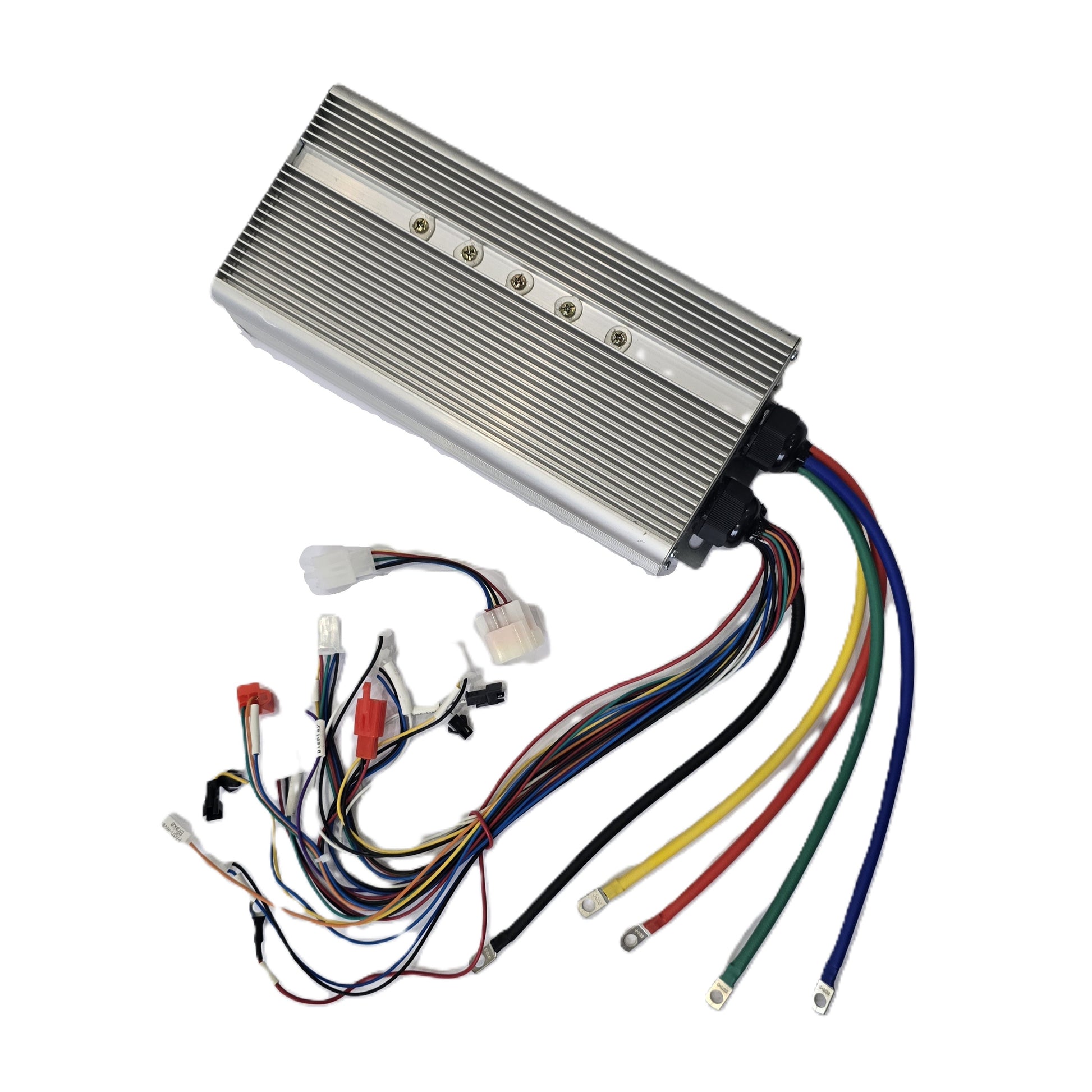

3000W 80a 120V-160V E-Bike Motor Speed Controller

Please read before use:

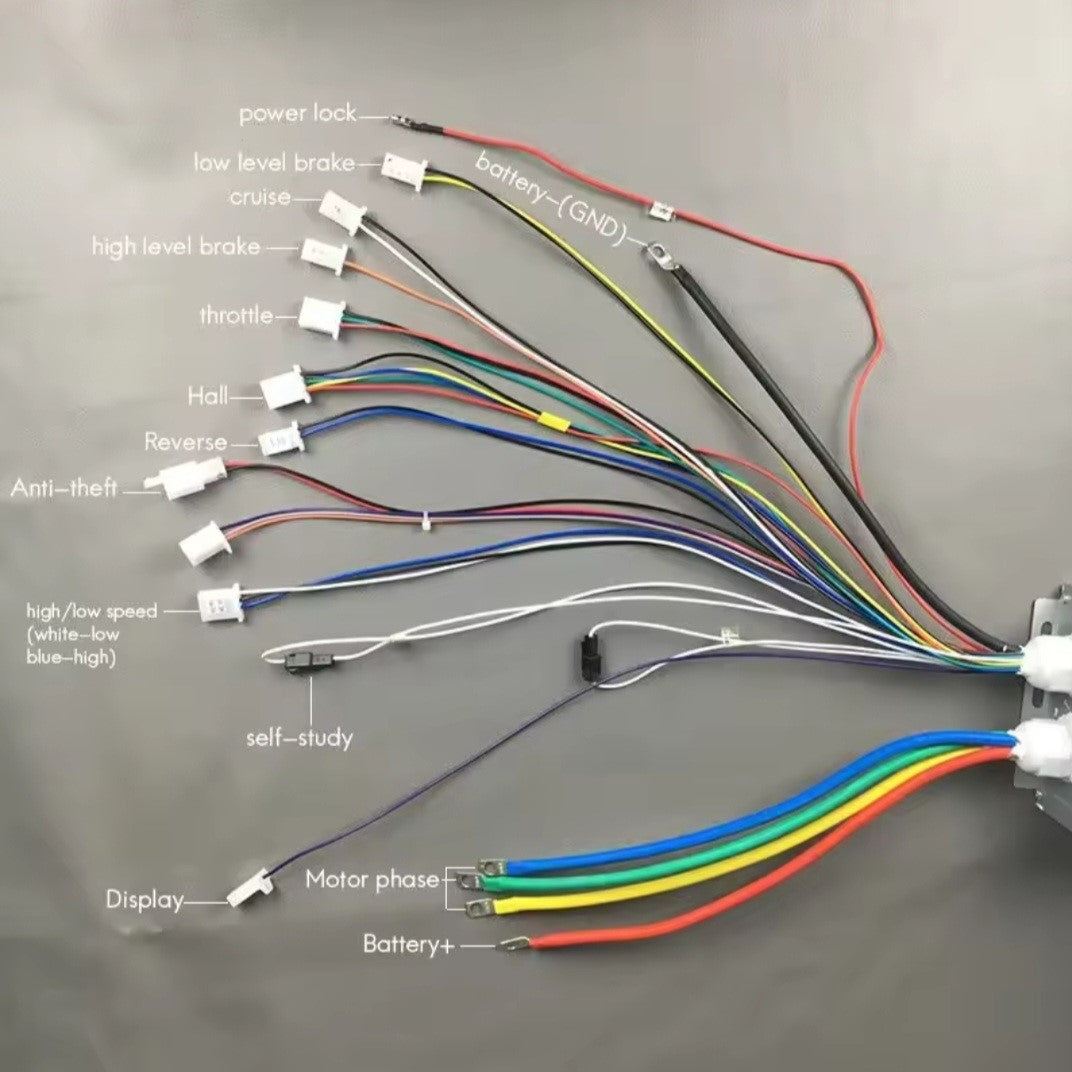

To operate without a display, connect the E-Lock (small red) cable to your battery’s positive lead. When first setting up, use the self-study/learning wires with the wheel off the ground to correctly sync motor direction and timing.

PACKAGE INCLUDES

• 1 × High-Voltage DC E-Bike / E-Scooter Motor Controller

COMPATIBILITY

Works with our 3000W MTX Rear Hub Motor, G2 Max Segway-Ninebot rear hub motors, and most similar direct-drive hub motors.

KEY FEATURES

• Wide Voltage Range: 48V–160V maximum voltage (supports two 72V batteries in series for over 168V when fully charged and maximum RPM!)

• Current: 80A ±1A continuous
• Power: 3000W nominal (higher RPM with higher voltage)
• Dual-Mode Operation: Works with or without Hall sensors
• Sinewave control for smooth, quiet performance (with working hall sensors)
• Display Options: Compatible with generic displays or run display-free using E-Lock
• Throttle-Only Ready: PAS not required
• Perfect for 3000W+ MTX e-bike kits

SPECIFICATIONS

• Mass: 1100g

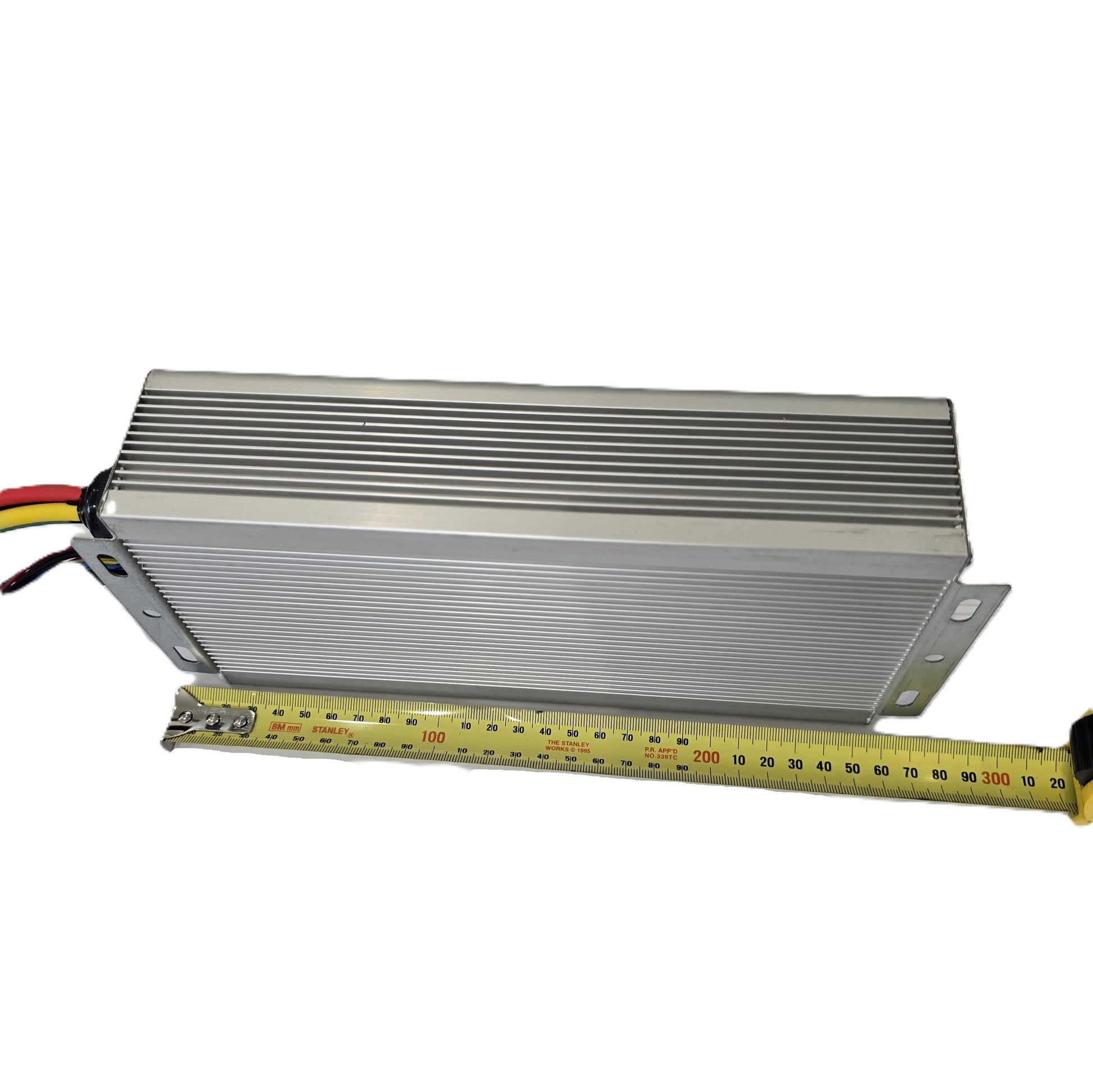

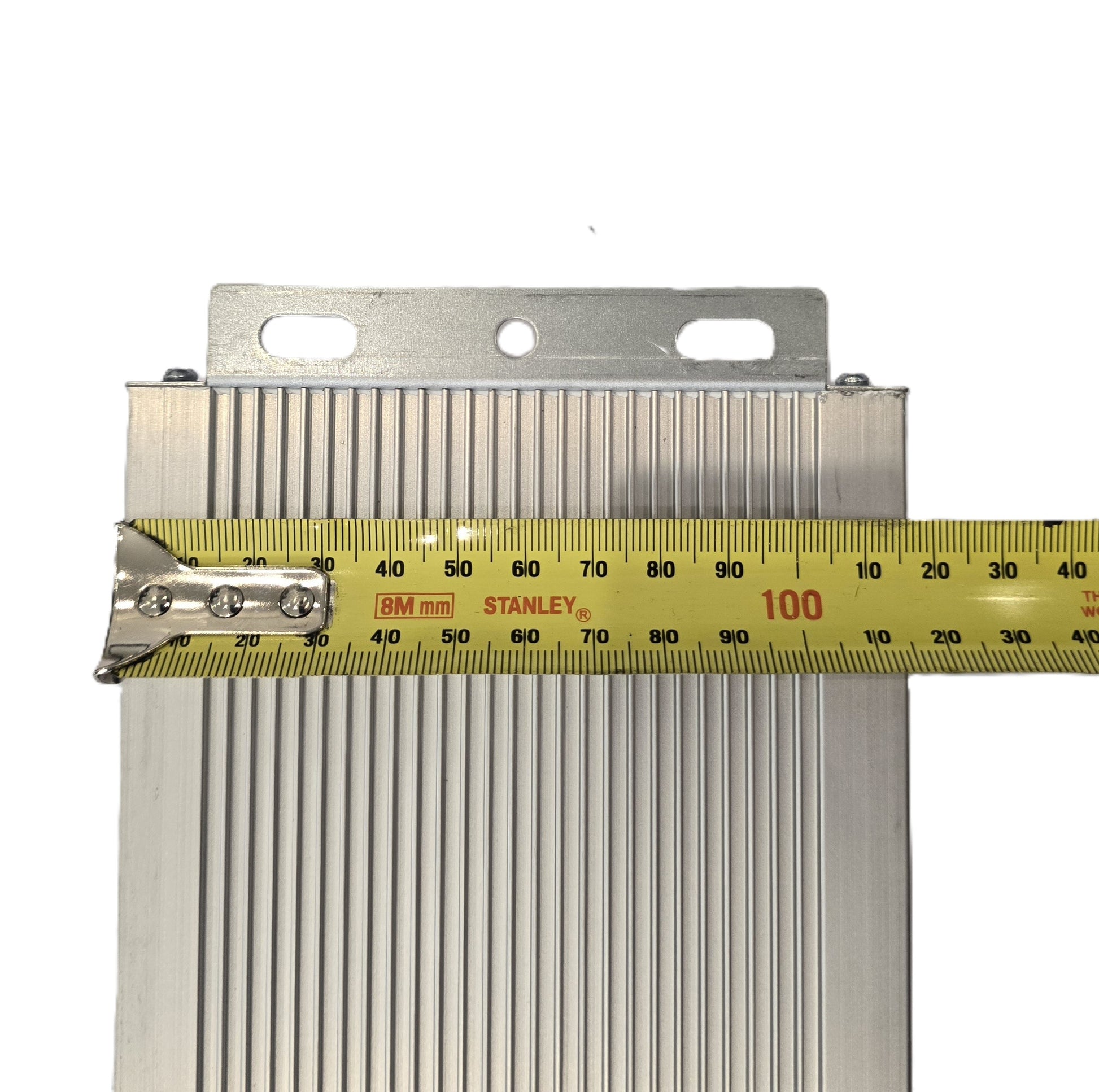

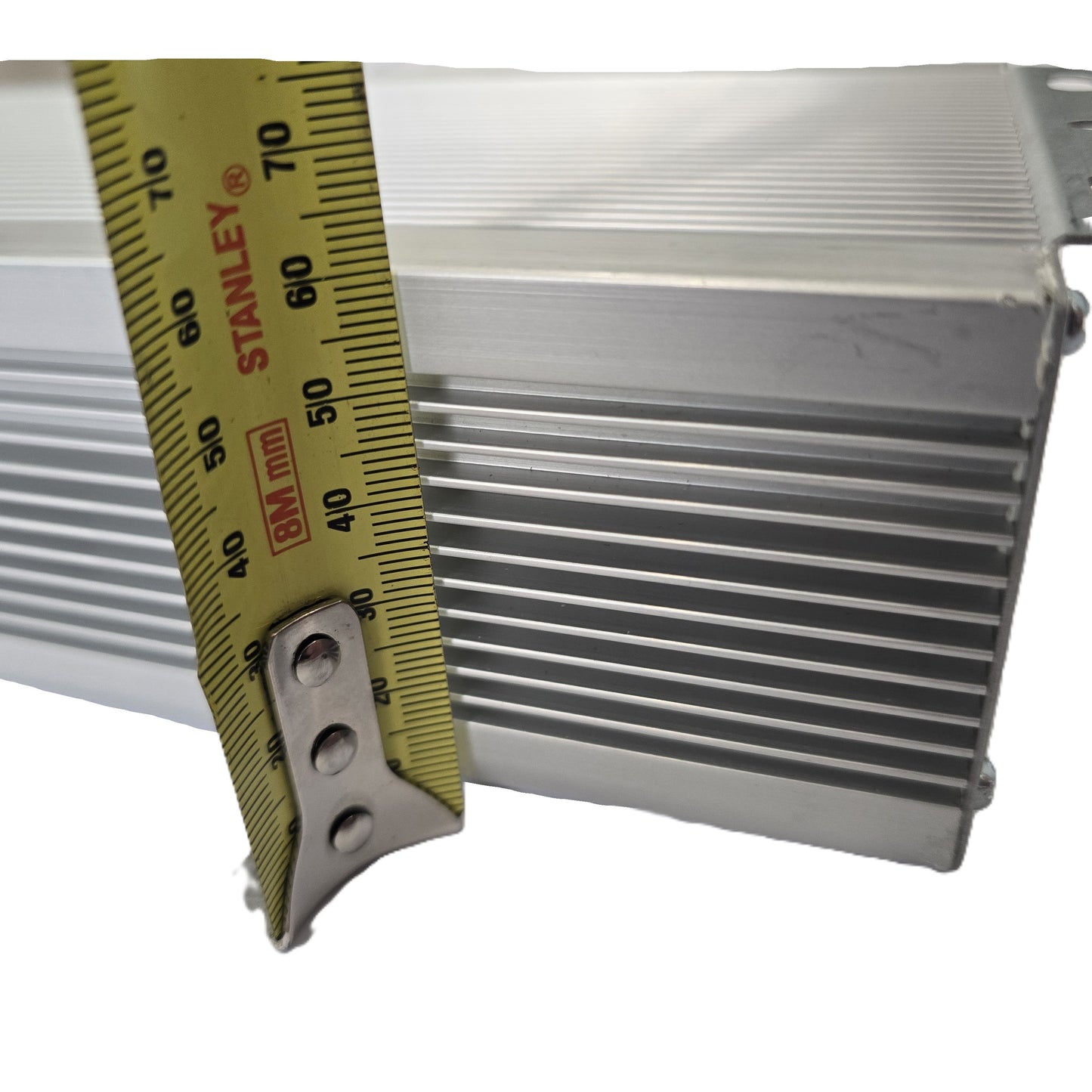

• Geometry: 272mm x 117mm x 60mm

NOTE

• Requires a 48V–160V (maximum voltage 168V ok) lithium-ion battery capable of at least 80A continuous output.
  Please check your battery and BMS ratings before use.
• Reaching 3000W output with two 72V batteries in series will produce very high RPM—ensure your setup is safe and suitable.
• Use the learning wires to auto-calibrate motor direction. Keep the wheel off the ground, plug/unplug until the controller locks in the correct sequence.
• Works best with our 3000W MTX Rear Hub Motor, capable of 100km/h+ when correctly configured (off-road use only; follow local laws).
• Compatible with many generic hub motors (e.g., G2 Max rear motors, DIY MTX kits) after learning mode is completed.
  Not compatible with most mid-drive systems, Bafang hubs, or low-power motors.
• For compatibility checks, feel free to contact us before purchasing.
• Electric Pedal Power is not liable for misuse and for incorrect installation, or damage caused by pairing this controller with undersized or low-powered motors that may burn out when overpowered. Please contact us if you’re unsure before purchasing.
